Manufacturer Part Number: | XCL220B183FR-G |
---|---|
Manufacturer: | Torex Semiconductor Ltd |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 1A INDUCTOR BUILT-IN PWM/PFM AUT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | XCL220B183FR-G Datasheet |
Internal Part Number | 898-XCL220B183FR-G | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | XCL219 and XCL220 Series | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Torex Semiconductor Ltd | |
Series | XCL220 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Non-Isolated PoL Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 2.5V | |
Voltage - Input (Max) | 5.5V | |
Voltage - Output 1 | 1.8V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 1A | |
Power (Watts) - Manufacture Series | - | |
Voltage - Isolation | - | |
Applications | ITE (Commercial) | |
Features | OCP, OTP, SCP, UVLO | |
Mounting Type | Surface Mount | |

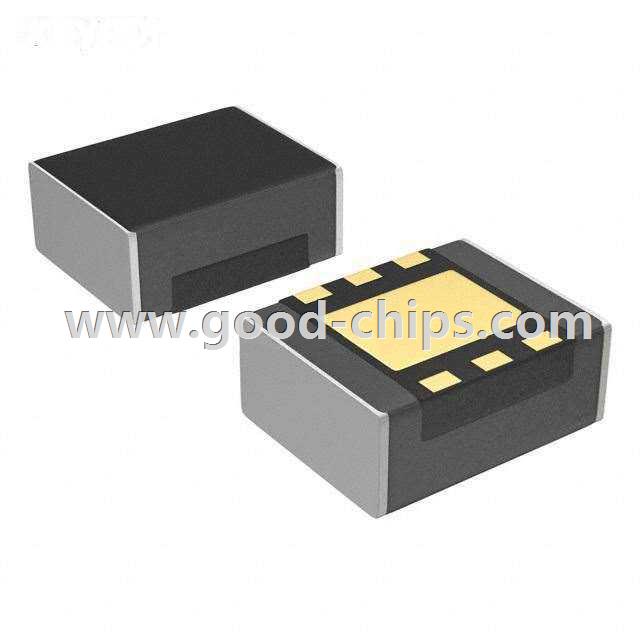

Package / Case | 8-SMD | |
Size / Dimension | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.04mm) | |
Operating Temperature | -40°C ~ 105°C | |
Efficiency | 93% | |
Power (Watts) - Max | - | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | XCL220B183FR-G | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
XCL220B183FR-G is in stock for immediate shipping now. We are the distributor of Torex Semiconductor Ltd all series components. The condition of XCL220B183FR-G is new and unused, you can buy XCL220B183FR-G Torex Semiconductor Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XCL220B183FR-G.
