| Manufacturer Part Number: | XC9271A085QR-G |
|---|---|
| Manufacturer: | Torex Semiconductor Ltd |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 1.2V 1 Output 2A 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | XC9271A085QR-G Datasheet |
| Internal Part Number | 898-XC9271A085QR-G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Buck (Step-Down) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Torex Semiconductor Ltd | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 7V | |
| Voltage - Input (Max) | 30V | |
| Voltage - Output (Min/Fixed) | 1.2V | |
| Voltage - Output (Max) | 12V | |
| Current - Output | 2A | |
| Frequency - Switching | 500kHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -40°C ~ 105°C (TA) | |
| Mounting Type | Surface Mount | |

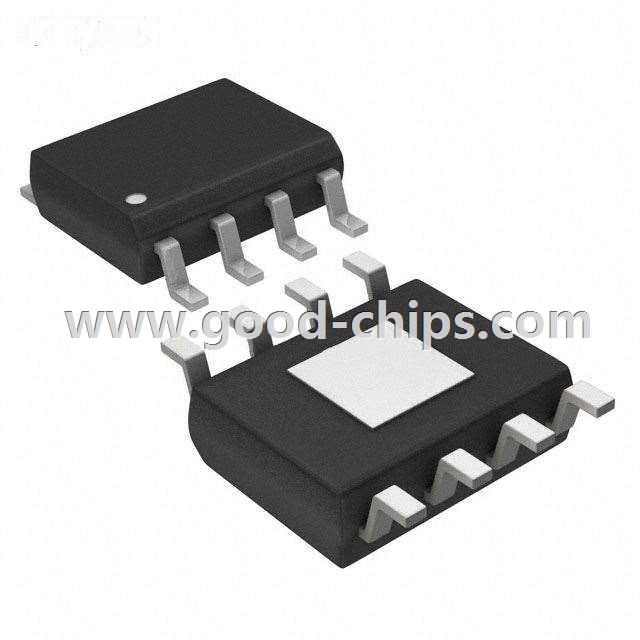

| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | |
| Supplier Device Package | 8-SOPFD | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | XC9271A085QR-G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
XC9271A085QR-G is in stock for immediate shipping now. We are the distributor of Torex Semiconductor Ltd all series components. The condition of XC9271A085QR-G is new and unused, you can buy XC9271A085QR-G Torex Semiconductor Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XC9271A085QR-G.
