| Manufacturer Part Number: | XC6209B502DR-G |
|---|---|
| Manufacturer: | Torex Semiconductor Ltd |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Fixed 1 Output 5V 150mA 6-USPB (1.8x2) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | XC6209B502DR-G Datasheet |
| Internal Part Number | 898-XC6209B502DR-G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | Torex Semiconductor Ltd | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Regulator Topology | Positive Fixed | |
| Voltage - Output | 5V | |
| Current - Output | 150mA | |
| Voltage - Dropout (Typical) | 0.16V @ 100mA | |
| Number of Regulators | 1 | |
| Voltage - Input | Up to 10V | |
| Current - Limit (Min) | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-WFDFN Exposed Pad | |

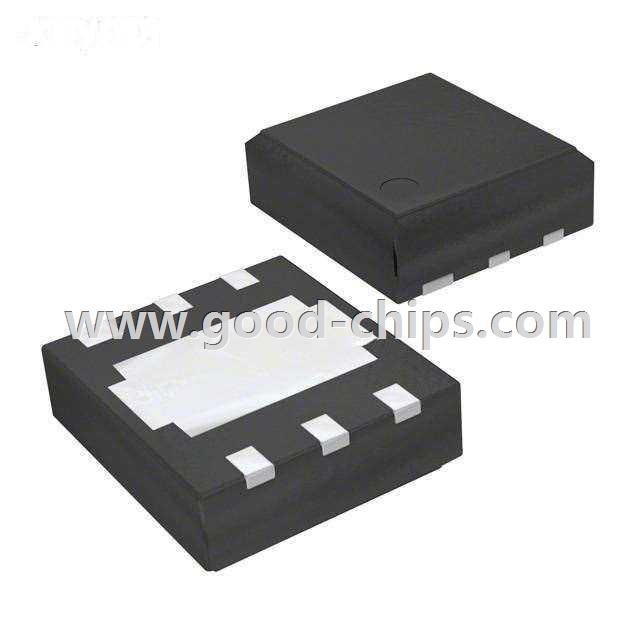

| Supplier Device Package | 6-USPB (1.8x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | XC6209B502DR-G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
XC6209B502DR-G is in stock for immediate shipping now. We are the distributor of Torex Semiconductor Ltd all series components. The condition of XC6209B502DR-G is new and unused, you can buy XC6209B502DR-G Torex Semiconductor Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XC6209B502DR-G.
