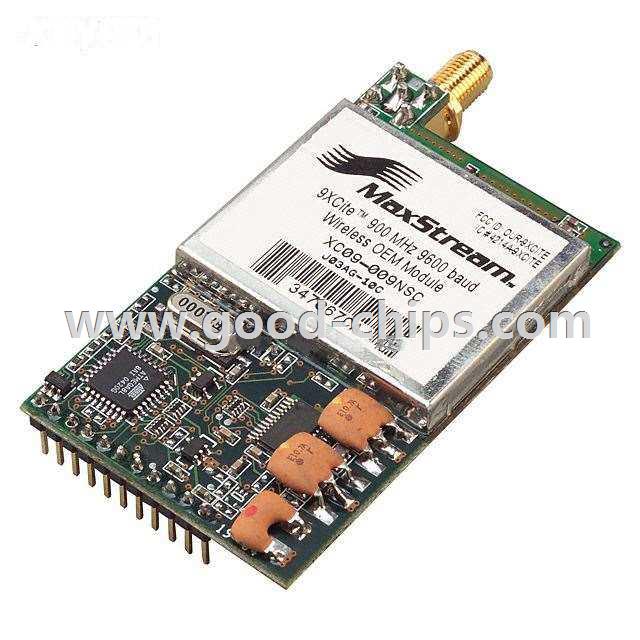

Manufacturer Part Number: | XC09-009NSC |
---|---|
Manufacturer: | Digi International |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MODULE ISM<1GHZ RP-SMA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | XC09-009NSC Datasheet |
Internal Part Number | 898-XC09-009NSC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Antenna Design and Integration Fundamentals | |
Design Resources | Development Tool Selector IoT Product Selector | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | Digi International | |
Series | 9XCite™ | |
Packaging | Bulk | |
Part Status | Obsolete | |
RF Family/Standard | General ISM < 1GHz | |
Protocol | - | |
Modulation | FHSS, FSK | |
Frequency | 900MHz | |
Data Rate | 9.4kbps | |
Power - Output | 6dBm | |
Sensitivity | -108dBm | |
Serial Interfaces | UART | |
Antenna Type | Not Included, RP-SMA | |
Memory Size | - | |
Voltage - Supply | 2.85 V ~ 5.5 V | |
Current - Receiving | 45mA ~ 55mA | |
Current - Transmitting | 55mA | |
Mounting Type | Through Hole | |
Operating Temperature | 0°C ~ 70°C | |
Package / Case | Module | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | XC09-009NSC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
XC09-009NSC is in stock for immediate shipping now. We are the distributor of Digi International all series components. The condition of XC09-009NSC is new and unused, you can buy XC09-009NSC Digi International with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XC09-009NSC.
