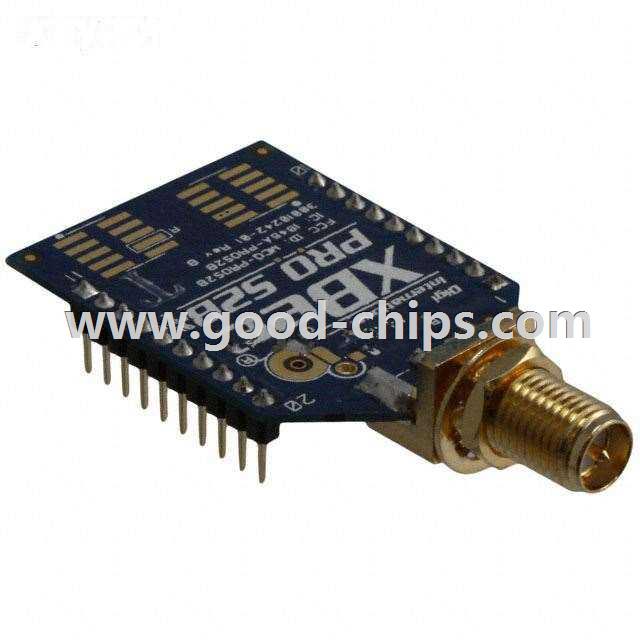

Manufacturer Part Number: | XBP24BZ7SITB003 |
---|---|
Manufacturer: | Digi International |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MODULE 802.15.4 RP-SMA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | XBP24BZ7SITB003 Datasheet |
Internal Part Number | 898-XBP24BZ7SITB003 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | XBee™ Family Chart XBee Migration Guide | |
Product Training Modules | Maximizing Range in Wireless Communications How to Perform a Range Test Between Two XBee Modules ZigBee in a Nutshell Chat Session via XBee Antenna Design and Integration Fundamentals | |
Video File | XBees Soar into Space on NASA Rocket Which Mesh Networking Technology is Right for You? | |
RoHS Information | RoHS Declaration of Compliance | |
Design Resources | Development Tool Selector IoT Product Selector | |
Featured Product | Digi International - The World of Xbee | |
PCN Obsolescence/ EOL | Xbee/PRO ZigBee S2/S2B EOL 19/Nov/2015 | |
PCN Design/Specification | XBee(-Pro) ZB Firmware 26/Jul/2011 Release of XCTU 6.2 16/Jun/2015 XCTU 10/Jun/2016 | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | Digi International | |
Series | XBee-Pro® ZB S2B | |
Packaging | Bulk | |
Part Status | Obsolete | |
RF Family/Standard | 802.15.4 | |
Protocol | Zigbee® | |
Modulation | - | |
Frequency | 2.4GHz | |
Data Rate | 250kbps | |
Power - Output | 18dBm | |
Sensitivity | -102dBm | |
Serial Interfaces | SPI, UART | |
Antenna Type | Not Included, RP-SMA | |
Memory Size | 32kB Flash, 2kB RAM | |
Voltage - Supply | 2.7 V ~ 3.6 V | |
Current - Receiving | 47mA ~ 62mA | |
Current - Transmitting | 205mA ~ 220mA | |
Mounting Type | Through Hole | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | Module | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | XBP24BZ7SITB003 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
XBP24BZ7SITB003 is in stock for immediate shipping now. We are the distributor of Digi International all series components. The condition of XBP24BZ7SITB003 is new and unused, you can buy XBP24BZ7SITB003 Digi International with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XBP24BZ7SITB003.
