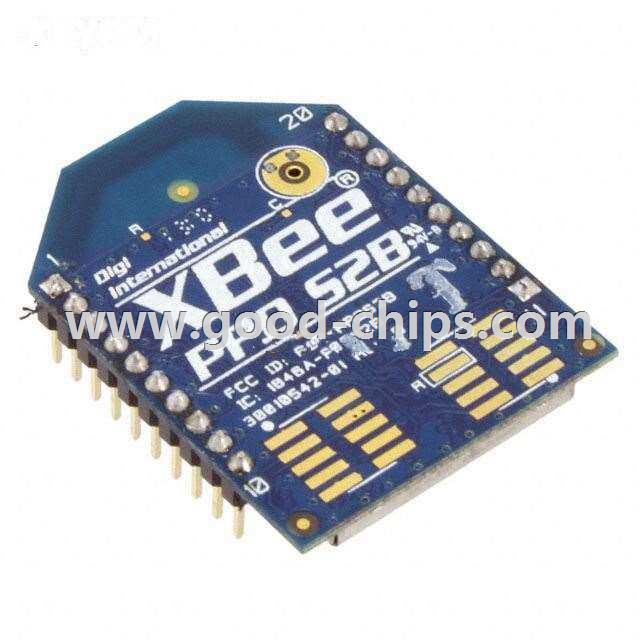

Manufacturer Part Number: | XBP24BZ7PIT-001 |
---|---|
Manufacturer: | Digi International |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MOD 802.15.4 TRACE ANT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | XBP24BZ7PIT-001 Datasheet |
Internal Part Number | 898-XBP24BZ7PIT-001 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | XBee™ Family Chart XBee Migration Guide | |
Product Training Modules | Maximizing Range in Wireless Communications How to Perform a Range Test Between Two XBee Modules Chat Session via XBee Antenna Design and Integration Fundamentals | |
Video File | XBees Soar into Space on NASA Rocket Which Mesh Networking Technology is Right for You? | |
RoHS Information | RoHS Declaration of Compliance | |
Design Resources | Development Tool Selector IoT Product Selector | |
Featured Product | Digi International - The World of Xbee | |
PCN Obsolescence/ EOL | Xbee/PRO ZigBee S2/S2B EOL 19/Nov/2015 | |
PCN Design/Specification | Release of XCTU 6.2 16/Jun/2015 XCTU 10/Jun/2016 | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | Digi International | |
Series | XBee-Pro® ZB S2B | |
Packaging | Bulk | |
Part Status | Obsolete | |
RF Family/Standard | 802.15.4 | |
Protocol | Zigbee® | |
Modulation | - | |
Frequency | 2.4GHz | |
Data Rate | 250kbps | |
Power - Output | 18dBm | |
Sensitivity | -102dBm | |
Serial Interfaces | SPI, UART | |
Antenna Type | Integrated, Trace | |
Memory Size | - | |
Voltage - Supply | 2.7 V ~ 3.6 V | |
Current - Receiving | 47mA ~ 62mA | |
Current - Transmitting | 205mA ~ 220mA | |
Mounting Type | Through Hole | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | Module | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | XBP24BZ7PIT-001 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
XBP24BZ7PIT-001 is in stock for immediate shipping now. We are the distributor of Digi International all series components. The condition of XBP24BZ7PIT-001 is new and unused, you can buy XBP24BZ7PIT-001 Digi International with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XBP24BZ7PIT-001.
