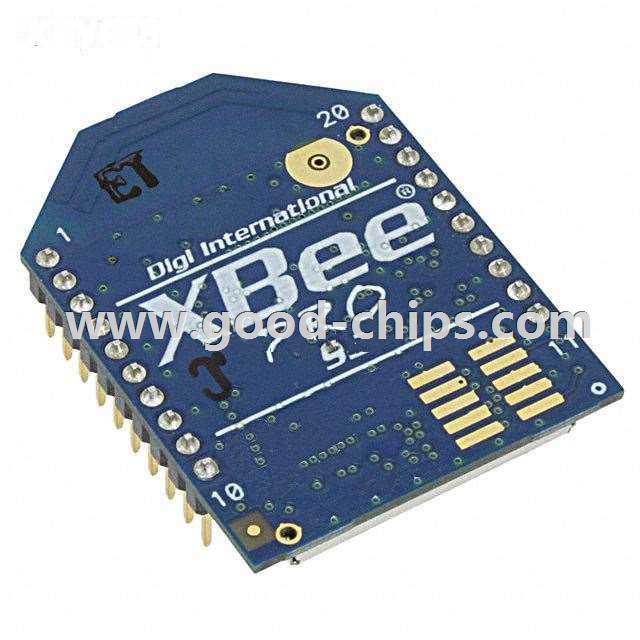

| Manufacturer Part Number: | XBP24-Z7PIT-003 |
|---|---|
| Manufacturer: | Digi International |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MOD 802.15.4 TRACE ANT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | XBP24-Z7PIT-003 Datasheet |
| Internal Part Number | 898-XBP24-Z7PIT-003 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | XBee™ Family Chart XBee Migration Guide | |
| Product Training Modules | How to Perform a Range Test Between Two XBee Modules Chat Session via XBee Antenna Design and Integration Fundamentals | |
| Video File | XBees Soar into Space on NASA Rocket Which Mesh Networking Technology is Right for You? | |
| RoHS Information | RoHS Declaration of Compliance | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| Featured Product | Digi International - The World of Xbee | |
| PCN Obsolescence/ EOL | Xbee/PRO ZigBee S2/S2B EOL 19/Nov/2015 | |
| PCN Design/Specification | Release of XCTU 6.2 16/Jun/2015 XCTU 10/Jun/2016 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | Digi International | |
| Series | XBee-Pro® ZB | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| RF Family/Standard | 802.15.4 | |
| Protocol | Zigbee® | |
| Modulation | DSSS | |
| Frequency | 2.4GHz | |
| Data Rate | 250kbps | |
| Power - Output | 17dBm | |
| Sensitivity | -102dBm | |
| Serial Interfaces | UART | |
| Antenna Type | Integrated, Trace | |
| Memory Size | - | |
| Voltage - Supply | 3 V ~ 3.4 V | |
| Current - Receiving | 45mA | |
| Current - Transmitting | 295mA | |
| Mounting Type | Through Hole | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | Module | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | XBP24-Z7PIT-003 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
XBP24-Z7PIT-003 is in stock for immediate shipping now. We are the distributor of Digi International all series components. The condition of XBP24-Z7PIT-003 is new and unused, you can buy XBP24-Z7PIT-003 Digi International with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XBP24-Z7PIT-003.
