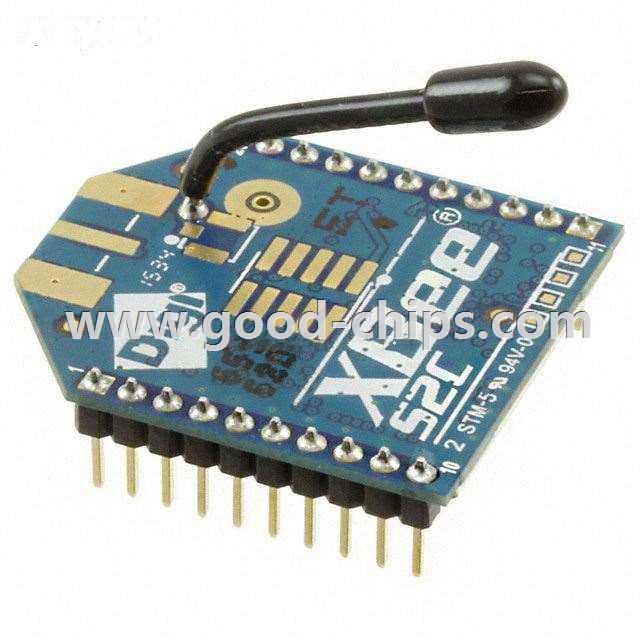

| Manufacturer Part Number: | XB24CZ7WITB003 |
|---|---|
| Manufacturer: | Digi International |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9060 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MODULE 802.15.4 WIRE ANT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | XB24CZ7WITB003 Datasheet |
| Internal Part Number | 898-XB24CZ7WITB003 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | XBee Migration Guide | |
| Product Training Modules | Chat Session via XBee Antenna Design and Integration Fundamentals | |
| Video File | XBees Soar into Space on NASA Rocket Which Mesh Networking Technology is Right for You? | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| PCN Design/Specification | Firmware Update 20/Aug/2015 XCTU 10/Jun/2016 | |
| Online Catalog | XBee® and XBee-PRO® ZB ZigBee | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | Digi International | |
| Series | XBee® ZigBee® | |
| Packaging | Tray | |
| Part Status | Active | |
| RF Family/Standard | 802.15.4 | |
| Protocol | Zigbee® | |
| Modulation | DSSS | |
| Frequency | 2.4GHz | |
| Data Rate | 1Mbps | |
| Power - Output | 8dBm | |
| Sensitivity | -102dBm | |
| Serial Interfaces | SPI, UART | |
| Antenna Type | Integrated, Wire Antenna | |
| Memory Size | 32kB Flash, 2kB RAM | |
| Voltage - Supply | 2.1 V ~ 3.6 V | |
| Current - Receiving | 28mA ~ 45mA | |
| Current - Transmitting | 33mA ~ 59mA | |
| Mounting Type | Through Hole | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | Module | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | XB24CZ7WITB003 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
XB24CZ7WITB003 is in stock for immediate shipping now. We are the distributor of Digi International all series components. The condition of XB24CZ7WITB003 is new and unused, you can buy XB24CZ7WITB003 Digi International with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XB24CZ7WITB003.
