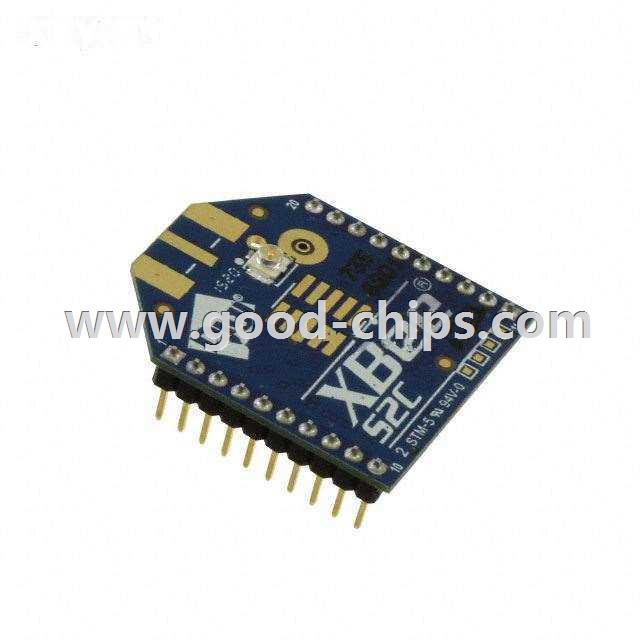

| Manufacturer Part Number: | XB24CZ7UIT-004 |
|---|---|
| Manufacturer: | Digi International |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9703 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MODULE 802.15.4 U.FL ANT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | XB24CZ7UIT-004 Datasheet |
| Internal Part Number | 898-XB24CZ7UIT-004 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | XBee Migration Guide | |
| Product Training Modules | Chat Session via XBee Antenna Design and Integration Fundamentals | |
| Video File | XBees Soar into Space on NASA Rocket Digi International Xbee ZigBee S2C Module | Digi-Key Daily Which Mesh Networking Technology is Right for You? | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| Featured Product | XBee® ZigBee® (S2C) Through-Hole | |
| PCN Design/Specification | Firmware Update 20/Aug/2015 XCTU 10/Jun/2016 | |
| Online Catalog | XBee® and XBee-PRO® ZB ZigBee | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | Digi International | |
| Series | XBee® ZigBee® | |
| Packaging | Tray | |
| Part Status | Active | |
| RF Family/Standard | 802.15.4 | |
| Protocol | Zigbee® | |
| Modulation | DSSS | |
| Frequency | 2.4GHz | |
| Data Rate | 1Mbps | |
| Power - Output | 8dBm | |
| Sensitivity | -102dBm | |
| Serial Interfaces | SPI, UART | |
| Antenna Type | Not Included, U.FL | |
| Memory Size | - | |
| Voltage - Supply | 2.1 V ~ 3.6 V | |
| Current - Receiving | 28mA ~ 45mA | |
| Current - Transmitting | 33mA ~ 59mA | |
| Mounting Type | Through Hole | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | Module | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | XB24CZ7UIT-004 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
XB24CZ7UIT-004 is in stock for immediate shipping now. We are the distributor of Digi International all series components. The condition of XB24CZ7UIT-004 is new and unused, you can buy XB24CZ7UIT-004 Digi International with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XB24CZ7UIT-004.
