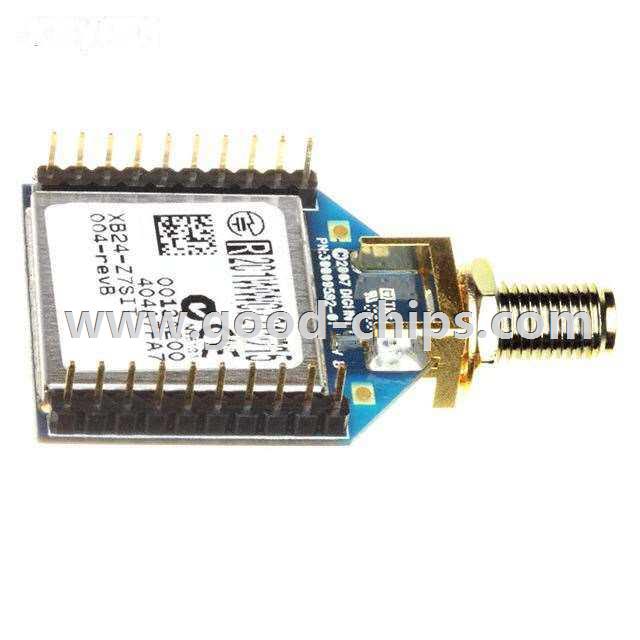

Manufacturer Part Number: | XB24-Z7SIT-004 |
---|---|
Manufacturer: | Digi International |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9029 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MODULE 802.15.4 RP-SMA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | XB24-Z7SIT-004 Datasheet |
Internal Part Number | 898-XB24-Z7SIT-004 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | XBee Migration Guide | |
Product Training Modules | Maximizing Range in Wireless Communications XBee Ecosystem and Device Cloud Chat Session via XBee Antenna Design and Integration Fundamentals | |
Video File | XBees Soar into Space on NASA Rocket Which Mesh Networking Technology is Right for You? | |
RoHS Information | RoHS Declaration of Compliance | |
Design Resources | Development Tool Selector IoT Product Selector | |
Featured Product | Digi International - The World of Xbee | |
PCN Obsolescence/ EOL | Xbee/PRO ZigBee S2/S2B EOL 19/Nov/2015 | |
PCN Design/Specification | XBee(-Pro) ZB Firmware 26/Jul/2011 Release of XCTU 6.2 16/Jun/2015 XCTU 10/Jun/2016 | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | Digi International | |
Series | XBee® ZB | |
Packaging | Tray | |
Part Status | Obsolete | |
RF Family/Standard | 802.15.4 | |
Protocol | Zigbee® | |
Modulation | DSSS | |
Frequency | 2.4GHz | |
Data Rate | 250kbps | |
Power - Output | 1dBm | |
Sensitivity | -96dBm | |
Serial Interfaces | UART | |
Antenna Type | Not Included, RP-SMA | |
Memory Size | - | |
Voltage - Supply | 2.1 V ~ 3.6 V | |
Current - Receiving | 38mA ~ 40mA | |
Current - Transmitting | 35mA ~ 45mA | |
Mounting Type | Through Hole | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | Module | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | XB24-Z7SIT-004 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
XB24-Z7SIT-004 is in stock for immediate shipping now. We are the distributor of Digi International all series components. The condition of XB24-Z7SIT-004 is new and unused, you can buy XB24-Z7SIT-004 Digi International with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XB24-Z7SIT-004.
