Manufacturer Part Number: | XAP-03V-1 |
---|---|
Manufacturer: | JST Sales America Inc. |
Product Category: | Rectangular Connectors - Housings |
Available Quantity: | 20807 Pieces |
Unit Price: | Quote by Email |

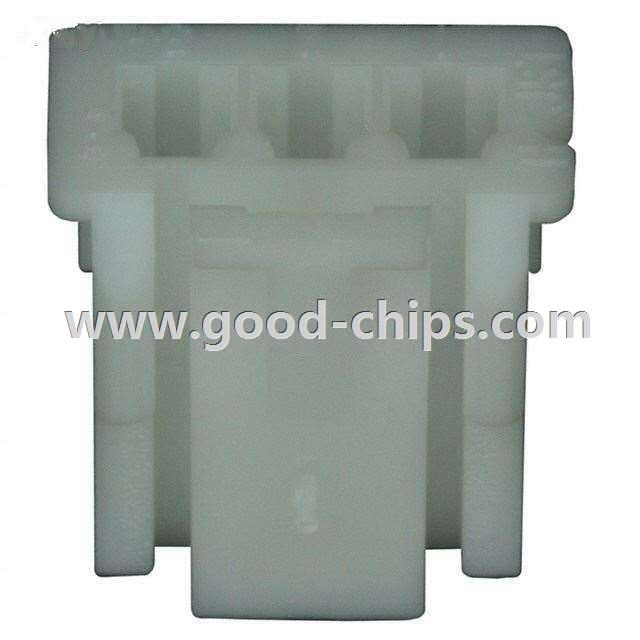

Description: | 3 Position Rectangular Housing Connector Receptacle Natural 0.098" (2.50mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | XAP-03V-1 Datasheet |
Internal Part Number | 898-XAP-03V-1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | XA Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Housings | |
Manufacturer | JST Sales America Inc. | |
Series | XA | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 3 | |
Pitch | 0.098" (2.50mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Mounting Type | Free Hanging (In-Line) | |
Contact Termination | Crimp | |
Fastening Type | Latch Lock | |
Color | Natural | |
Features | - | |
Note | Contacts Not Provided | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | XAP-03V-1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
XAP-03V-1 is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of XAP-03V-1 is new and unused, you can buy XAP-03V-1 JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XAP-03V-1.
