| Manufacturer Part Number: | WT231M1D1AB |
|---|---|
| Manufacturer: | Electroswitch |
| Product Category: | Toggle Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

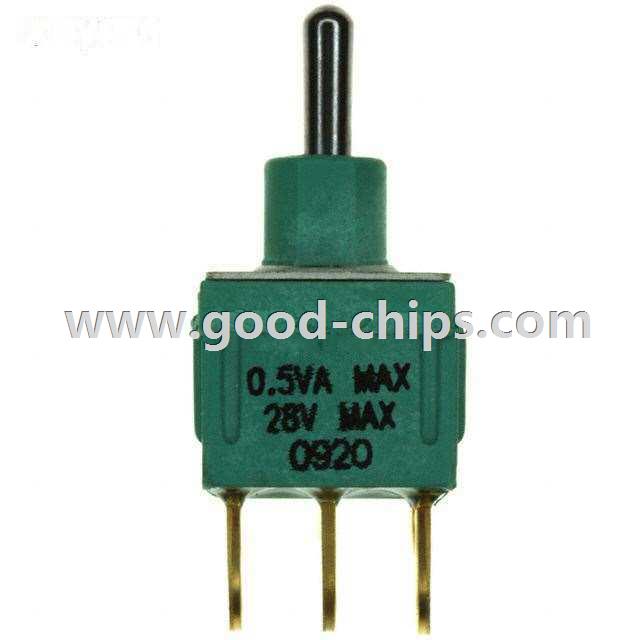

| Description: | Toggle Switch DPDT Through Hole, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WT231M1D1AB Datasheet |
| Internal Part Number | 898-WT231M1D1AB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Toggle Switches | |
| Manufacturer | Electroswitch | |
| Series | WT | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | DPDT | |
| Switch Function | On-Off-Mom | |
| Current Rating | 0.5VA (AC/DC) | |
| Voltage Rating - AC | 28V | |
| Voltage Rating - DC | 28V | |
| Actuator Type | Standard Round | |
| Actuator Length | 7.60mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination Style | PC Pin | |
| Panel Cutout Dimensions | - | |
| Bushing Thread | Unthreaded | |
| Ingress Protection | - | |
| Features | - | |
| Actuator Material | Brass, Chrome Plated | |
| Electrical Life | 60,000 Cycles | |
| Operating Temperature | -30°C ~ 85°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WT231M1D1AB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WT231M1D1AB is in stock for immediate shipping now. We are the distributor of Electroswitch all series components. The condition of WT231M1D1AB is new and unused, you can buy WT231M1D1AB Electroswitch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WT231M1D1AB.
