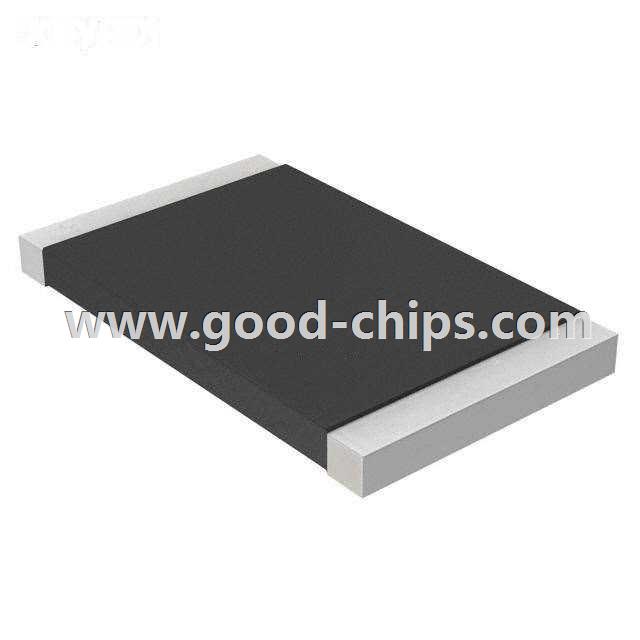

| Manufacturer Part Number: | WSL2816R0200FEH |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Chip Resistor - Surface Mount |
| Available Quantity: | 23468 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES SMD 0.02 OHM 1% 2W 2816 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WSL2816R0200FEH Datasheet |
| Internal Part Number | 898-WSL2816R0200FEH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | WSL Series | |
| Category | Resistors | |
| Family | Chip Resistor - Surface Mount | |
| Manufacturer | Vishay Dale | |
| Series | WSL | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Resistance (Ohms) | 0.02 | |
| Tolerance | ±1% | |
| Power (Watts) | 2W | |
| Composition | Metal Element | |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | |
| Temperature Coefficient | ±75ppm/°C | |
| Operating Temperature | -65°C ~ 170°C | |
| Package / Case | 2816 | |
| Supplier Device Package | 2816 | |
| Size / Dimension | 0.280" L x 0.165" W (7.10mm x 4.20mm) | |
| Height | 0.035" (0.89mm) | |
| Number of Terminations | 2 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WSL2816R0200FEH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WSL2816R0200FEH is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of WSL2816R0200FEH is new and unused, you can buy WSL2816R0200FEH Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WSL2816R0200FEH.
