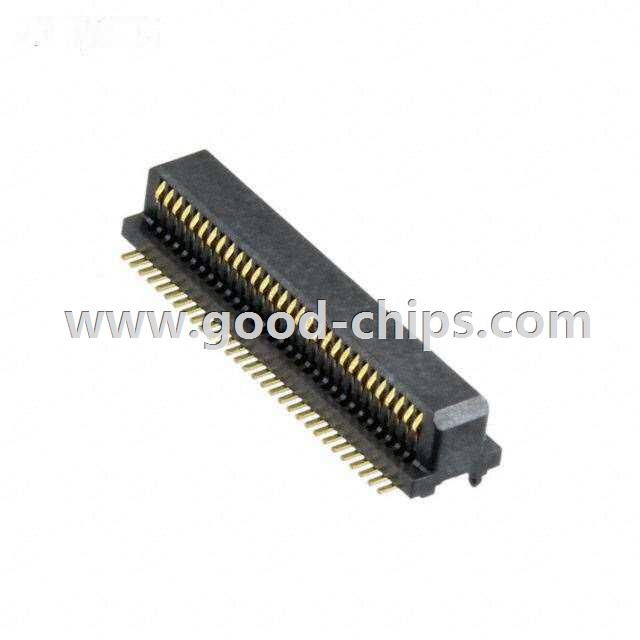

Manufacturer Part Number: | WR-60SB-VF-N1 |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 60 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | WR-60SB-VF-N1 Datasheet |
Internal Part Number | 898-WR-60SB-VF-N1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | JAE Electronics | |
Series | WR | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Receptacle, Center Strip Contacts | |
Number of Positions | 60 | |
Pitch | 0.020" (0.50mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | Board Guide | |
Contact Finish | Gold | |
Contact Finish Thickness | 3.9µin (0.10µm) | |
Mated Stacking Heights | 4mm, 5mm, 6mm | |
Height Above Board | 0.128" (3.25mm) | |
Standard Package | 56 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | WR-60SB-VF-N1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
WR-60SB-VF-N1 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of WR-60SB-VF-N1 is new and unused, you can buy WR-60SB-VF-N1 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WR-60SB-VF-N1.
