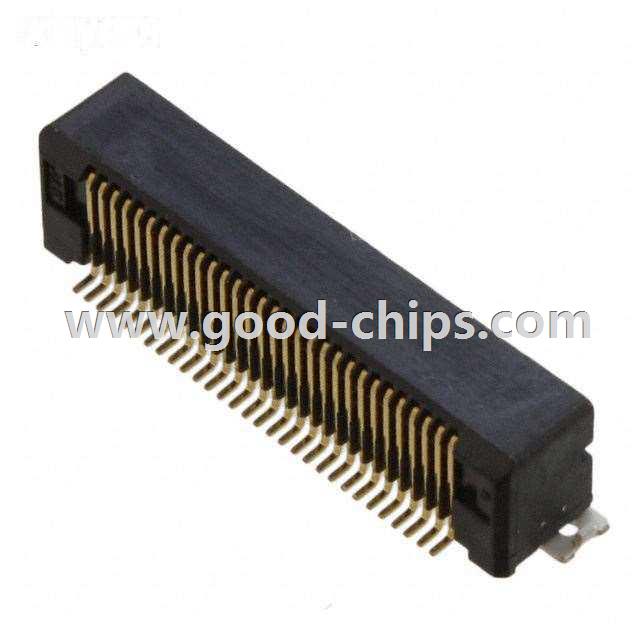

| Manufacturer Part Number: | WR-60P-HF-HD-A1E |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9217 Pieces |
| Unit Price: | Quote by Email |
| Description: | 60 Position Connector Plug, Outer Shroud Contacts Surface Mount, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WR-60P-HF-HD-A1E Datasheet |
| Internal Part Number | 898-WR-60P-HF-HD-A1E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | WR Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | JAE Electronics | |
| Series | WR | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Plug, Outer Shroud Contacts | |
| Number of Positions | 60 | |
| Pitch | 0.020" (0.50mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount, Right Angle | |
| Features | Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Mated Stacking Heights | - | |
| Height Above Board | 0.185" (4.70mm) | |
| Standard Package | 37 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WR-60P-HF-HD-A1E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WR-60P-HF-HD-A1E is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of WR-60P-HF-HD-A1E is new and unused, you can buy WR-60P-HF-HD-A1E JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WR-60P-HF-HD-A1E.
