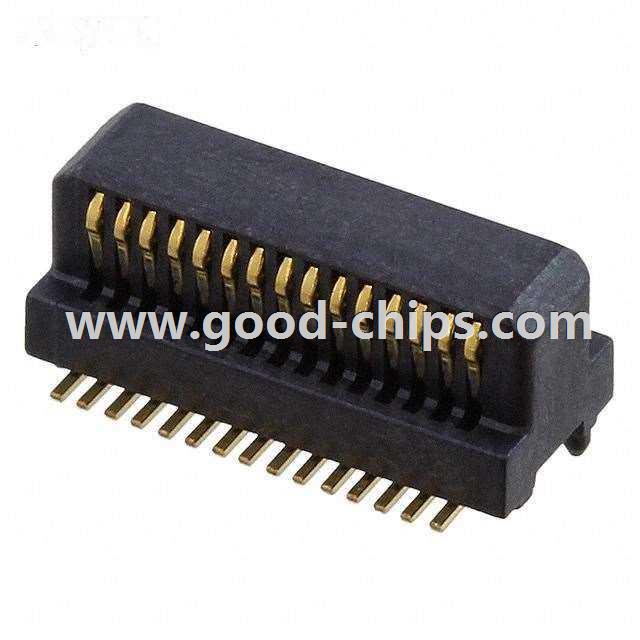

| Manufacturer Part Number: | WR-30SB-VFH05-N1-R1500 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9905 Pieces |
| Unit Price: | Quote by Email |
| Description: | 30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WR-30SB-VFH05-N1-R1500 Datasheet |
| Internal Part Number | 898-WR-30SB-VFH05-N1-R1500 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | WR Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | JAE Electronics | |
| Series | WR | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Connector Type | Receptacle, Center Strip Contacts | |
| Number of Positions | 30 | |
| Pitch | 0.020" (0.50mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Mated Stacking Heights | 4.5mm, 5.5mm, 6.5mm | |
| Height Above Board | 0.148" (3.75mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WR-30SB-VFH05-N1-R1500 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WR-30SB-VFH05-N1-R1500 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of WR-30SB-VFH05-N1-R1500 is new and unused, you can buy WR-30SB-VFH05-N1-R1500 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WR-30SB-VFH05-N1-R1500.
