Manufacturer Part Number: | WP934CB/ID |
---|---|
Manufacturer: | Kingbright |
Product Category: | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs |
Available Quantity: | 18239 Pieces |
Unit Price: | Quote by Email |

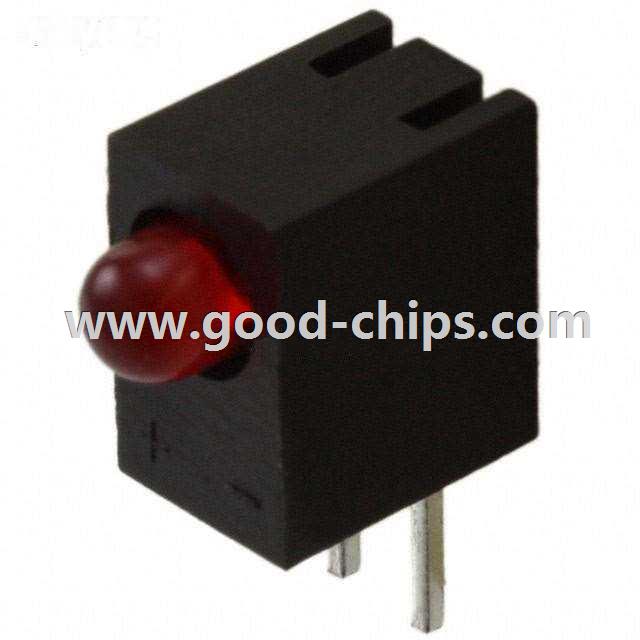

Description: | LED Circuit Board Indicator Single Red Diffused, Tinted 2V 20mA Round with Domed Top, 3mm (T-1) Through Hole, Right Angle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | WP934CB/ID Datasheet |
Internal Part Number | 898-WP934CB/ID | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | WP934CB/x.sldprt WP934CB/x.pro WP934CB/x.igs WP934CB/x.stp | |
Online Catalog | Single Level 3mm (T1) Single Color Right Angle LEDs | |
Category | Optoelectronics | |
Family | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs | |
Manufacturer | Kingbright | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Color | Red | |
Wavelength - Peak | 627nm | |
Configuration | Single | |
Current | 20mA | |
Millicandela Rating | 22.5mcd | |
Viewing Angle | 40° | |
Lens Type | Diffused, Tinted | |
Lens Style/Size | Round with Domed Top, 3mm (T-1) | |
Voltage Rating | 2V | |
Mounting Type | Through Hole, Right Angle | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | WP934CB/ID | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
WP934CB/ID is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of WP934CB/ID is new and unused, you can buy WP934CB/ID Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WP934CB/ID.
