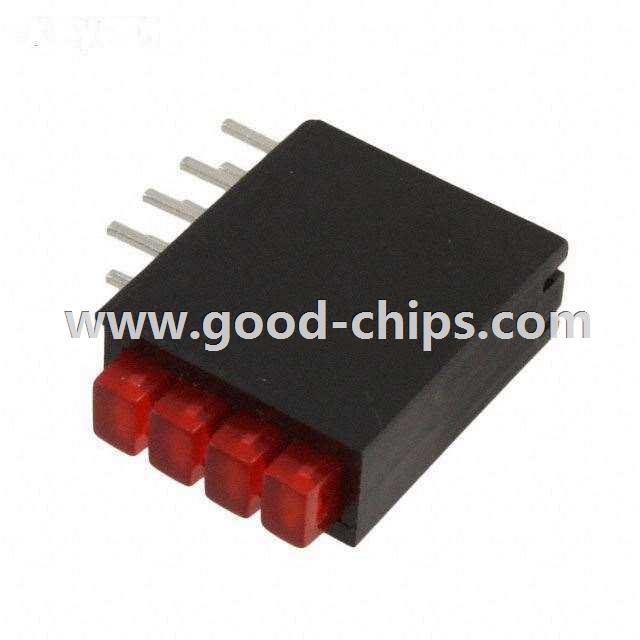

| Manufacturer Part Number: | WP914CK/4IDT |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs |
| Available Quantity: | 13275 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Circuit Board Indicator Bar - 4 High, DIP Red (x 4) Diffused, Tinted 2V 20mA Rectangle with Flat Top, 3.00mm x 2.00mm Through Hole, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WP914CK/4IDT Datasheet |
| Internal Part Number | 898-WP914CK/4IDT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | WP914CK/x.sldprt WP914CK/x.pro WP914CK/x.igs WP914CK/x.stp | |
| Online Catalog | Quad Level 3mm x 2mm Single Color Right Angle LEDs | |
| Category | Optoelectronics | |
| Family | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Color | Red (x 4) | |
| Wavelength - Peak | 625nm | |
| Configuration | Bar - 4 High, DIP | |
| Current | 20mA | |
| Millicandela Rating | 5.5mcd | |
| Viewing Angle | 100° | |
| Lens Type | Diffused, Tinted | |
| Lens Style/Size | Rectangle with Flat Top, 3.00mm x 2.00mm | |
| Voltage Rating | 2V | |
| Mounting Type | Through Hole, Right Angle | |
| Standard Package | 660 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WP914CK/4IDT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WP914CK/4IDT is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of WP914CK/4IDT is new and unused, you can buy WP914CK/4IDT Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WP914CK/4IDT.
