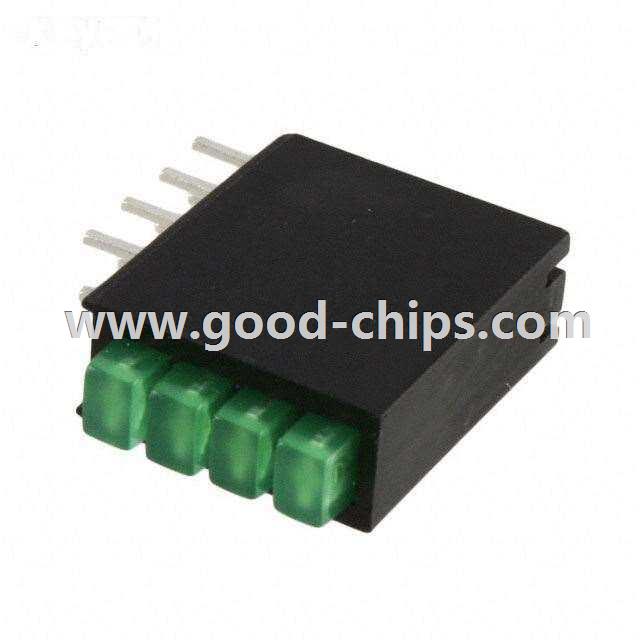

Manufacturer Part Number: | WP914CK/4GDT |
---|---|
Manufacturer: | Kingbright |
Product Category: | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs |
Available Quantity: | 35697 Pieces |
Unit Price: | Quote by Email |
Description: | LED Circuit Board Indicator Bar - 4 High, DIP Green (x 4) Diffused, Tinted 2.2V 20mA Rectangle with Flat Top, 3.00mm x 2.00mm Through Hole, Right Angle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | WP914CK/4GDT Datasheet |
Internal Part Number | 898-WP914CK/4GDT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | WP914CK/x.sldprt WP914CK/x.pro WP914CK/x.igs WP914CK/x.stp | |
Online Catalog | Quad Level 3mm x 2mm Single Color Right Angle LEDs | |
Category | Optoelectronics | |
Family | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs | |
Manufacturer | Kingbright | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Color | Green (x 4) | |
Wavelength - Peak | 568nm | |
Configuration | Bar - 4 High, DIP | |
Current | 20mA | |
Millicandela Rating | 4.5mcd | |
Viewing Angle | 100° | |
Lens Type | Diffused, Tinted | |
Lens Style/Size | Rectangle with Flat Top, 3.00mm x 2.00mm | |
Voltage Rating | 2.2V | |
Mounting Type | Through Hole, Right Angle | |
Standard Package | 660 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | WP914CK/4GDT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
WP914CK/4GDT is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of WP914CK/4GDT is new and unused, you can buy WP914CK/4GDT Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WP914CK/4GDT.
