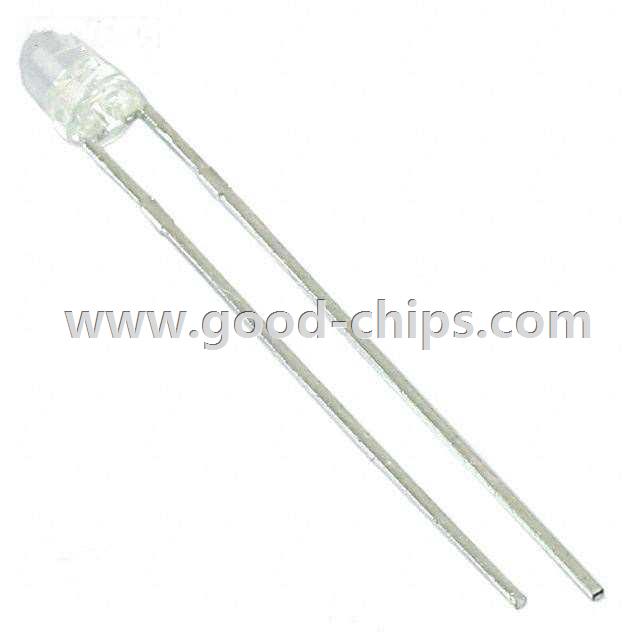

| Manufacturer Part Number: | WP710A10WG1C |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Green 505nm LED Indication - Discrete 3.2V Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WP710A10WG1C Datasheet |
| Internal Part Number | 898-WP710A10WG1C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | WP710A10x.sldprt WP710A10x.pro WP710A10x.igs WP710A10x.stp | |
| PCN Obsolescence/ EOL | EOL 19/Jan/2016 | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | HELI2 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Color | Green | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 5800mcd | |
| Lens Style/Size | Round with Domed Top, 3mm (T-1), 2.85mm | |
| Voltage - Forward (Vf) (Typ) | 3.2V | |
| Current - Test | 20mA | |
| Viewing Angle | 34° | |
| Mounting Type | Through Hole | |
| Wavelength - Dominant | 505nm | |
| Wavelength - Peak | 505nm | |
| Features | - | |
| Package / Case | Radial | |
| Supplier Device Package | T-1 | |
| Size / Dimension | - | |
| Height (Max) | 5.90mm | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WP710A10WG1C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WP710A10WG1C is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of WP710A10WG1C is new and unused, you can buy WP710A10WG1C Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WP710A10WG1C.
