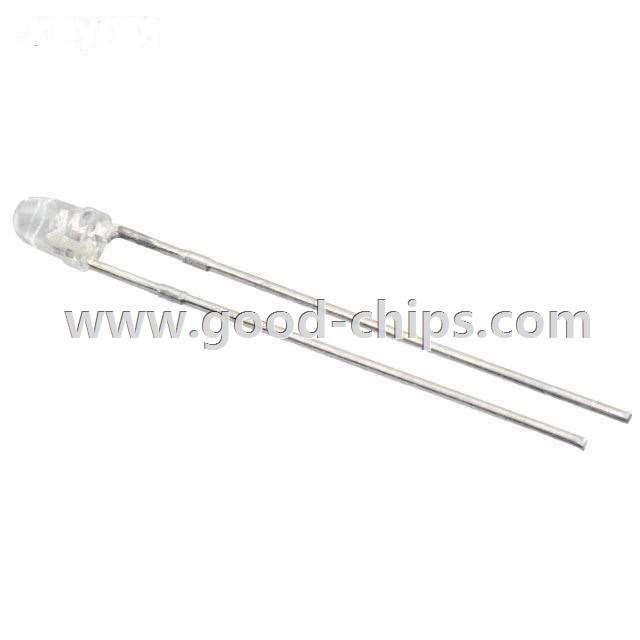

| Manufacturer Part Number: | WP710A10LSECK/J3 |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 10441 Pieces |
| Unit Price: | Quote by Email |
| Description: | Red 625nm LED Indication - Discrete 1.8V Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WP710A10LSECK/J3 Datasheet |
| Internal Part Number | 898-WP710A10LSECK/J3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | WP710A10x.sldprt WP710A10x.pro WP710A10x.igs WP710A10x.stp | |
| Online Catalog | 3mm, T-1 Round with Domed Top LED Lamps | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | HELI2 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Color | Red | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 320mcd | |
| Lens Style/Size | Round with Domed Top, 3mm (T-1), 2.80mm | |
| Voltage - Forward (Vf) (Typ) | 1.8V | |
| Current - Test | 2mA | |
| Viewing Angle | 34° | |
| Mounting Type | Through Hole | |
| Wavelength - Dominant | 625nm | |
| Wavelength - Peak | 640nm | |
| Features | - | |
| Package / Case | Radial | |
| Supplier Device Package | T-1 (3mm) | |
| Size / Dimension | 0.033" L x 0.026" W (0.85mm x 0.65mm) | |
| Height (Max) | 5.90mm | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WP710A10LSECK/J3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WP710A10LSECK/J3 is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of WP710A10LSECK/J3 is new and unused, you can buy WP710A10LSECK/J3 Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WP710A10LSECK/J3.
