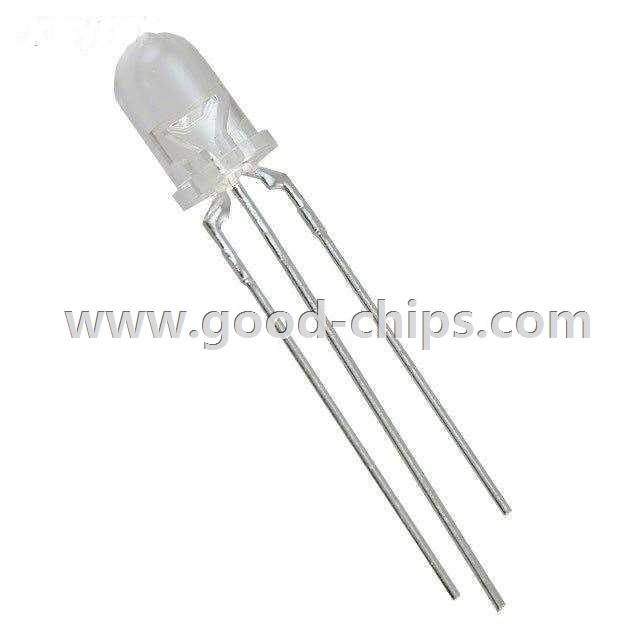

| Manufacturer Part Number: | WP59EYC |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9679 Pieces |
| Unit Price: | Quote by Email |
| Description: | Red, Yellow 617nm Red, 588nm Yellow LED Indication - Discrete 2V Red, 2.1V Yellow Radial - 3 Leads |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WP59EYC Datasheet |
| Internal Part Number | 898-WP59EYC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | WP59x.sldprt WP59x.pro WP59x.igs WP59x.stp | |
| Online Catalog | 5mm, T-1 3/4 Bi-Color Round with Domed Top LED Lamps | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Color | Red, Yellow | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 100mcd Red, 80mcd Yellow | |
| Lens Style/Size | Round with Domed Top, 5mm (T-1 3/4), 5.00mm | |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.1V Yellow | |
| Current - Test | 20mA Red, 20mA Yellow | |
| Viewing Angle | 24° | |
| Mounting Type | Through Hole | |
| Wavelength - Dominant | 617nm Red, 588nm Yellow | |
| Wavelength - Peak | 627nm Red, 590nm Yellow | |
| Features | - | |
| Package / Case | Radial - 3 Leads | |
| Supplier Device Package | T-1 3/4 | |
| Size / Dimension | - | |
| Height (Max) | 11.35mm | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WP59EYC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WP59EYC is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of WP59EYC is new and unused, you can buy WP59EYC Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WP59EYC.
