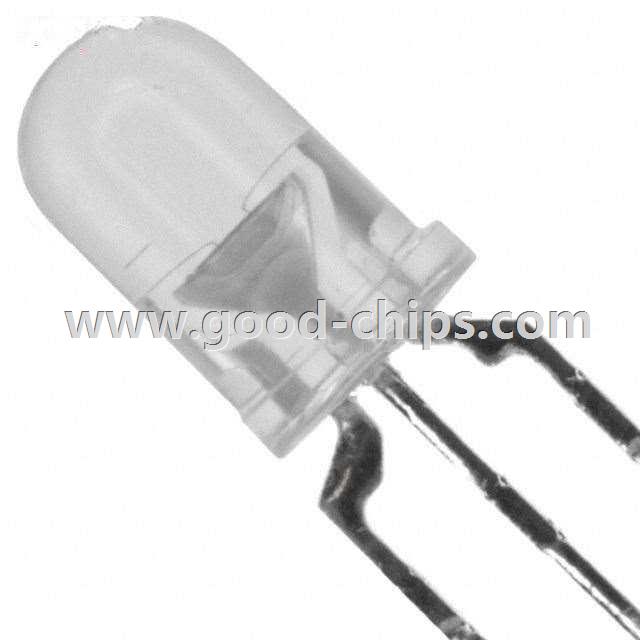

| Manufacturer Part Number: | WP59EGC |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 23568 Pieces |
| Unit Price: | Quote by Email |
| Description: | Green, Red 568nm Green, 617nm Red LED Indication - Discrete 2.2V Green, 2V Red Radial - 3 Leads |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WP59EGC Datasheet |
| Internal Part Number | 898-WP59EGC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | WP59x.sldprt WP59x.pro WP59x.igs WP59x.stp | |
| Online Catalog | 5mm, T-1 3/4 Bi-Color Round with Domed Top LED Lamps | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Color | Green, Red | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 120mcd Green, 100mcd Red | |
| Lens Style/Size | Round with Domed Top, 5mm (T-1 3/4), 5.00mm | |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2V Red | |
| Current - Test | 20mA Green, 20mA Red | |
| Viewing Angle | 24° | |
| Mounting Type | Through Hole | |
| Wavelength - Dominant | 568nm Green, 617nm Red | |
| Wavelength - Peak | 565nm Green, 627nm Red | |
| Features | - | |
| Package / Case | Radial - 3 Leads | |
| Supplier Device Package | T-1 3/4 | |
| Size / Dimension | - | |
| Height (Max) | 11.35mm | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WP59EGC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WP59EGC is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of WP59EGC is new and unused, you can buy WP59EGC Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WP59EGC.
