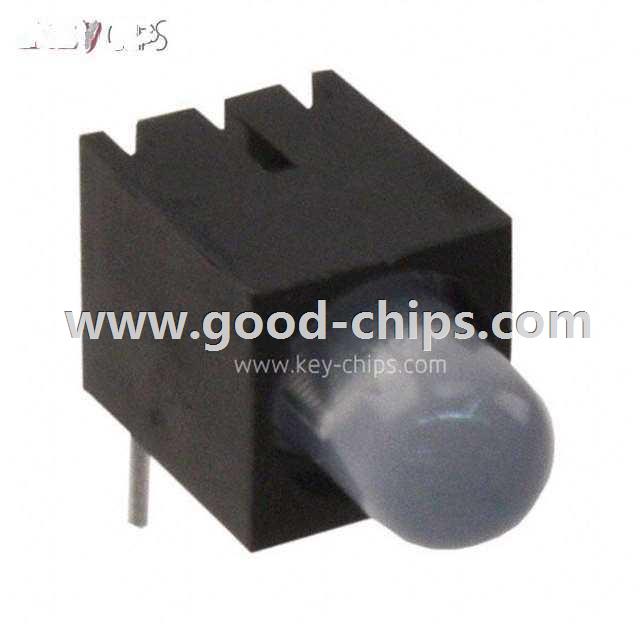

| Manufacturer Part Number: | WP59BL/GYW |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs |
| Available Quantity: | 9333 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Circuit Board Indicator Single Green, Yellow Diffused, White 2.2V Green, 2.1V Yellow 25mA Green, 30mA Yellow Round with Domed Top, 5mm (T-1 3/4) Through Hole, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WP59BL/GYW Datasheet |
| Internal Part Number | 898-WP59BL/GYW | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | WP59BL/x.sldprt WP59BL/x.pro WP59BL/x.igs WP59BL/x.stp | |
| Online Catalog | Single Level 5mm (T-1 3/4) Bi-Color Right Angle LEDs | |
| Category | Optoelectronics | |
| Family | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Color | Green, Yellow | |
| Wavelength - Peak | 565nm, 590nm | |
| Configuration | Single | |
| Current | 25mA Green, 30mA Yellow | |
| Millicandela Rating | 100mcd Green, 40mcd Yellow | |
| Viewing Angle | 60° | |
| Lens Type | Diffused, White | |
| Lens Style/Size | Round with Domed Top, 5mm (T-1 3/4) | |
| Voltage Rating | 2.2V Green, 2.1V Yellow | |
| Mounting Type | Through Hole, Right Angle | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WP59BL/GYW | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WP59BL/GYW is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of WP59BL/GYW is new and unused, you can buy WP59BL/GYW Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WP59BL/GYW.
