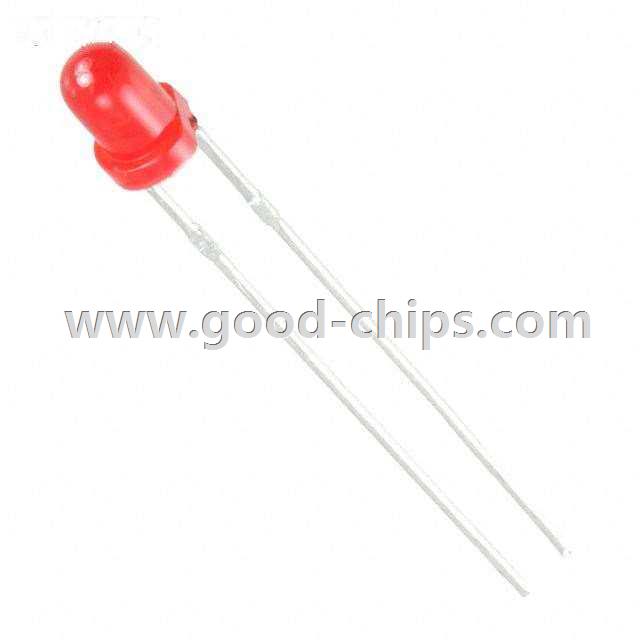

| Manufacturer Part Number: | WP3A8HD |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 19451 Pieces |
| Unit Price: | Quote by Email |
| Description: | Red 635nm LED Indication - Discrete 2.25V Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WP3A8HD Datasheet |
| Internal Part Number | 898-WP3A8HD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | WP3A8x.sldprt WP3A8x.pro WP3A8x.igs WP3A8x.stp | |
| Online Catalog | 3mm, T-1 Round with Domed Top LED Lamps | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Color | Red | |
| Lens Color | Red | |
| Lens Transparency | Diffused | |
| Millicandela Rating | 2.5mcd | |
| Lens Style/Size | Round with Domed Top, 3mm (T-1), 3.00mm | |
| Voltage - Forward (Vf) (Typ) | 2.25V | |
| Current - Test | 20mA | |
| Viewing Angle | 50° | |
| Mounting Type | Through Hole | |
| Wavelength - Dominant | 635nm | |
| Wavelength - Peak | 700nm | |
| Features | - | |
| Package / Case | Radial | |
| Supplier Device Package | T-1 | |
| Size / Dimension | - | |
| Height (Max) | 5.00mm | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WP3A8HD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WP3A8HD is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of WP3A8HD is new and unused, you can buy WP3A8HD Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WP3A8HD.
