| Manufacturer Part Number: | WP1533BQ/SRD |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

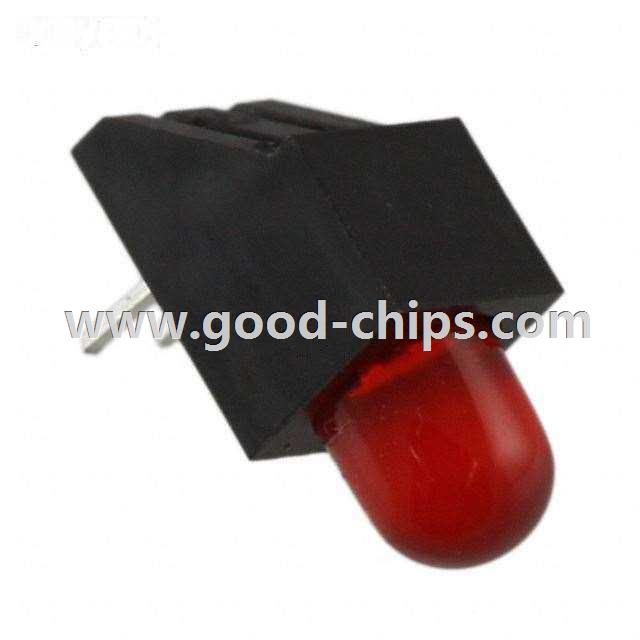

| Description: | LED Circuit Board Indicator Single Red Diffused, Tinted 1.85V 20mA Round with Domed Top, 4.70mm Through Hole, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WP1533BQ/SRD Datasheet |
| Internal Part Number | 898-WP1533BQ/SRD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | WP1533BQ/x.sldprt WP1533BQ/x.pro WP1533BQ/x.igs WP1533BQ/x.stp | |
| Category | Optoelectronics | |
| Family | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Color | Red | |
| Wavelength - Peak | 660nm | |
| Configuration | Single | |
| Current | 20mA | |
| Millicandela Rating | 700mcd | |
| Viewing Angle | 60° | |
| Lens Type | Diffused, Tinted | |
| Lens Style/Size | Round with Domed Top, 4.70mm | |
| Voltage Rating | 1.85V | |
| Mounting Type | Through Hole, Right Angle | |
| Standard Package | 82 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WP1533BQ/SRD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WP1533BQ/SRD is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of WP1533BQ/SRD is new and unused, you can buy WP1533BQ/SRD Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WP1533BQ/SRD.
