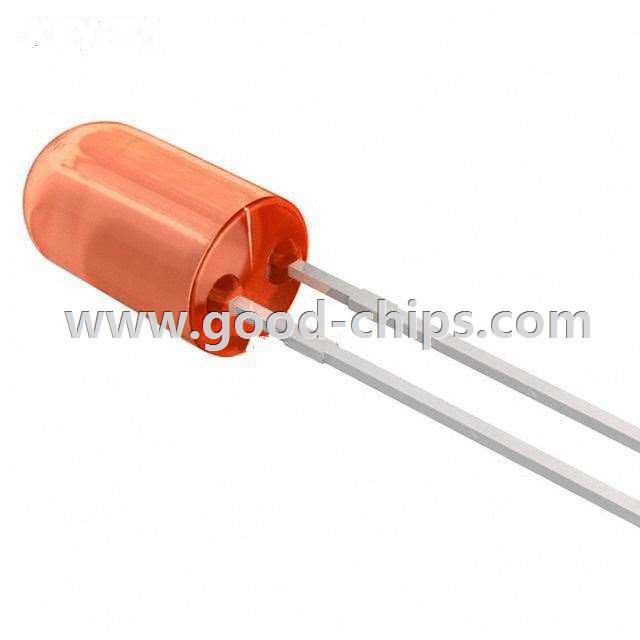

| Manufacturer Part Number: | WP1503SRD |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Red 640nm LED Indication - Discrete 1.85V Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WP1503SRD Datasheet |
| Internal Part Number | 898-WP1503SRD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | WP1503x.igs WP1503x.pro WP1503x.sldprt WP1503x.stp | |
| Online Catalog | 5mm, T-1 3/4 Round with Domed Top LED Lamps | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Color | Red | |
| Lens Color | Red | |
| Lens Transparency | Diffused | |
| Millicandela Rating | 260mcd | |
| Lens Style/Size | Round with Domed Top, 5mm (T-1 3/4), 5.00mm | |
| Voltage - Forward (Vf) (Typ) | 1.85V | |
| Current - Test | 20mA | |
| Viewing Angle | 60° | |
| Mounting Type | Through Hole | |
| Wavelength - Dominant | 640nm | |
| Wavelength - Peak | 655nm | |
| Features | - | |
| Package / Case | Radial | |
| Supplier Device Package | T-1 3/4 | |
| Size / Dimension | - | |
| Height (Max) | 8.60mm | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WP1503SRD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WP1503SRD is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of WP1503SRD is new and unused, you can buy WP1503SRD Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WP1503SRD.
