Manufacturer Part Number: | WP115WEGW |
---|---|
Manufacturer: | Kingbright |
Product Category: | LED Indication - Discrete |
Available Quantity: | 13093 Pieces |
Unit Price: | Quote by Email |

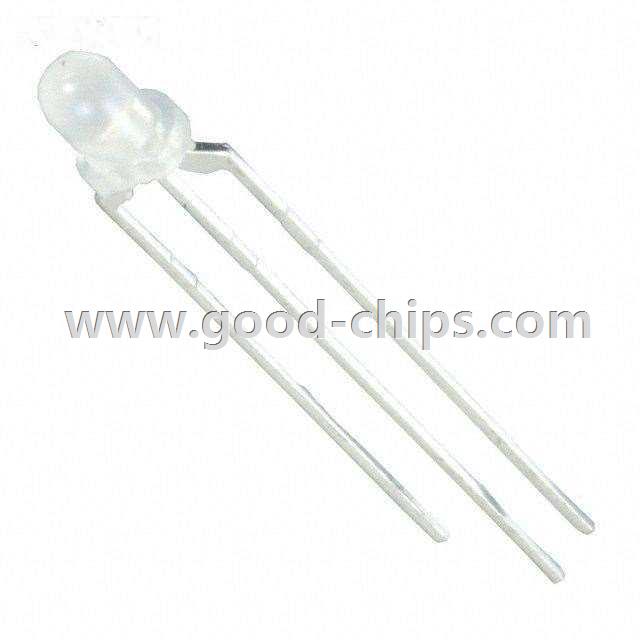

Description: | Green, Red 568nm Green, 617nm Red LED Indication - Discrete 2.2V Green, 2V Red Radial - 3 Leads |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | WP115WEGW Datasheet |
Internal Part Number | 898-WP115WEGW | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | WP115x.igs WP115x.pro WP115Vx.sldprt 115x.stp | |
Online Catalog | 3mm, T-1 Bi-Color Round with Domed Top 3-Leads LED Lamps | |
Category | Optoelectronics | |
Family | LED Indication - Discrete | |
Manufacturer | Kingbright | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Color | Green, Red | |
Lens Color | White | |
Lens Transparency | Diffused | |
Millicandela Rating | 40mcd Green, 20mcd Red | |
Lens Style/Size | Round with Domed Top, 3mm (T-1), 3.00mm | |
Voltage - Forward (Vf) (Typ) | 2.2V Green, 2V Red | |
Current - Test | 20mA Green, 20mA Red | |
Viewing Angle | 60° | |
Mounting Type | Through Hole | |
Wavelength - Dominant | 568nm Green, 617nm Red | |
Wavelength - Peak | 565nm Green, 627nm Red | |
Features | - | |
Package / Case | Radial - 3 Leads | |
Supplier Device Package | T-1 | |
Size / Dimension | - | |
Height (Max) | 7.83mm | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | WP115WEGW | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
WP115WEGW is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of WP115WEGW is new and unused, you can buy WP115WEGW Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WP115WEGW.
