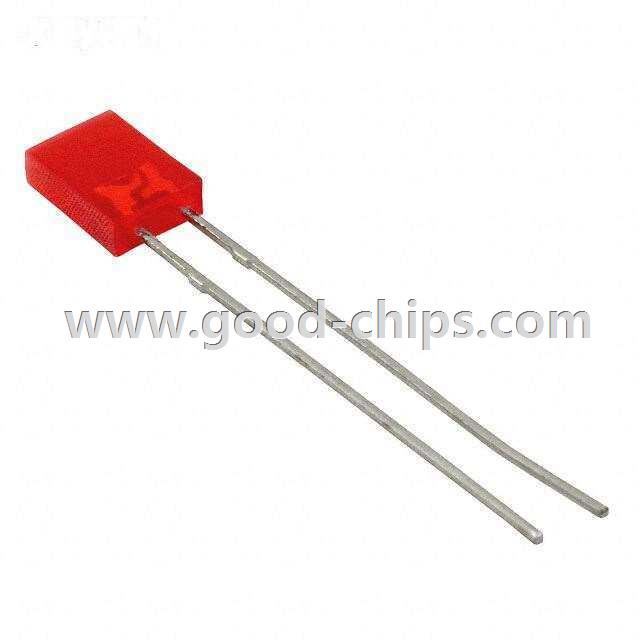

| Manufacturer Part Number: | WP113HDT |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9914 Pieces |
| Unit Price: | Quote by Email |
| Description: | Red 635nm LED Indication - Discrete 2.25V Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WP113HDT Datasheet |
| Internal Part Number | 898-WP113HDT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | WP113x.sldprt WP113x.pro WP113x.igs WP113x.stp | |
| Online Catalog | 2mm x 5mm Rectangle with Flat Top LED Lamps | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Color | Red | |
| Lens Color | Red | |
| Lens Transparency | Diffused | |
| Millicandela Rating | 0.6mcd | |
| Lens Style/Size | Rectangle with Flat Top, 5.00mm x 2.00mm | |
| Voltage - Forward (Vf) (Typ) | 2.25V | |
| Current - Test | 20mA | |
| Viewing Angle | 110° | |
| Mounting Type | Through Hole | |
| Wavelength - Dominant | 635nm | |
| Wavelength - Peak | 700nm | |
| Features | - | |
| Package / Case | Radial | |
| Supplier Device Package | Rectangular 2mmx5mm | |
| Size / Dimension | - | |
| Height (Max) | 7.00mm | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WP113HDT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WP113HDT is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of WP113HDT is new and unused, you can buy WP113HDT Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WP113HDT.
