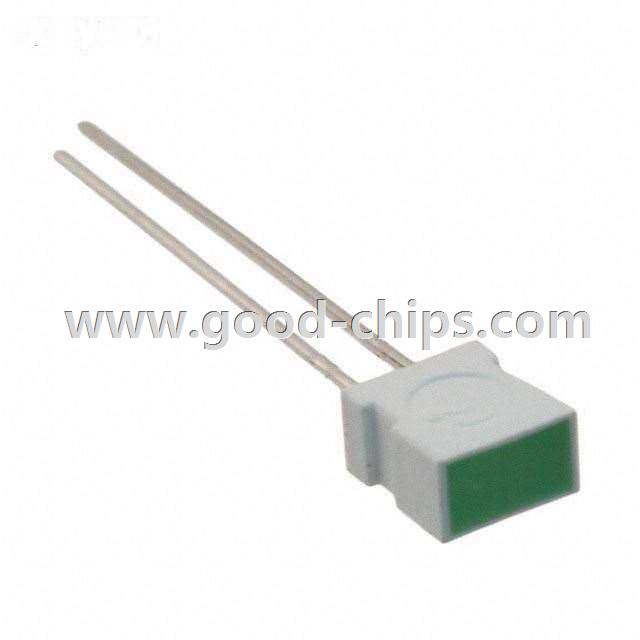

Manufacturer Part Number: | WP1043SGD |
---|---|
Manufacturer: | Kingbright |
Product Category: | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs |
Available Quantity: | 9267 Pieces |
Unit Price: | Quote by Email |
Description: | LED Circuit Board Indicator Bar - Single, SIP Green Diffused, Tinted 2.2V 25mA Rectangle with Flat Top, 6.15mm x 3.65mm Through Hole, Right Angle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | WP1043SGD Datasheet |
Internal Part Number | 898-WP1043SGD | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | WP1043x.sldprt WP1043x.pro WP1043x.igs WP1043x.stp | |
Online Catalog | 3.65mm x 6.15mm Light Bars | |
Category | Optoelectronics | |
Family | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs | |
Manufacturer | Kingbright | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Color | Green | |
Wavelength - Peak | 568nm | |
Configuration | Bar - Single, SIP | |
Current | 25mA | |
Millicandela Rating | 10mcd | |
Viewing Angle | 100° | |
Lens Type | Diffused, Tinted | |
Lens Style/Size | Rectangle with Flat Top, 6.15mm x 3.65mm | |
Voltage Rating | 2.2V | |
Mounting Type | Through Hole, Right Angle | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | WP1043SGD | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
WP1043SGD is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of WP1043SGD is new and unused, you can buy WP1043SGD Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WP1043SGD.
