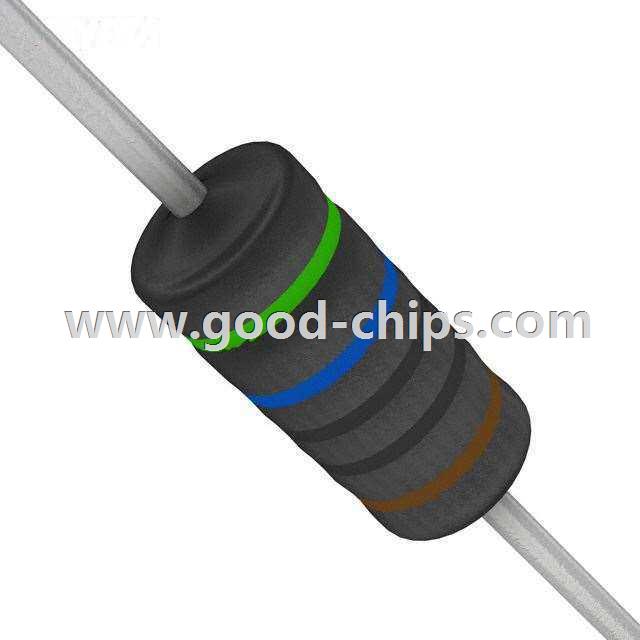

| Manufacturer Part Number: | WHB560FET |
|---|---|
| Manufacturer: | Ohmite |
| Product Category: | Through Hole Resistors |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES 560 OHM 1W 1% AXIAL |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WHB560FET Datasheet |
| Internal Part Number | 898-WHB560FET | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | WH Series | |
| Category | Resistors | |
| Family | Through Hole Resistors | |
| Manufacturer | Ohmite | |
| Series | WH | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Resistance (Ohms) | 560 | |
| Tolerance | ±1% | |
| Power (Watts) | 1W | |
| Composition | Wirewound | |
| Features | - | |
| Temperature Coefficient | ±20ppm/°C | |
| Operating Temperature | -55°C ~ 150°C | |
| Package / Case | Axial | |
| Supplier Device Package | Axial | |
| Size / Dimension | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | |
| Height | - | |
| Number of Terminations | 2 | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WHB560FET | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WHB560FET is in stock for immediate shipping now. We are the distributor of Ohmite all series components. The condition of WHB560FET is new and unused, you can buy WHB560FET Ohmite with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WHB560FET.
