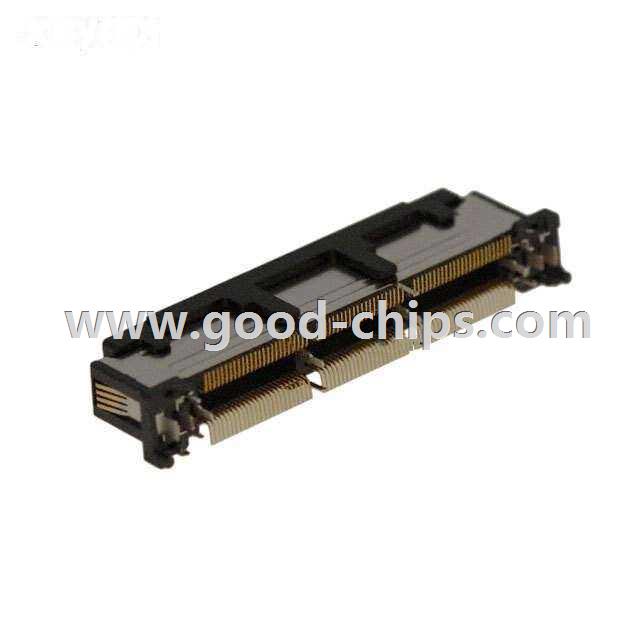

| Manufacturer Part Number: | WD2M144WB1R300 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 10241 Pieces |
| Unit Price: | Quote by Email |
| Description: | 148 (144 + 4 Power) Position Connector Plug, Outer Shroud Contacts Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WD2M144WB1R300 Datasheet |
| Internal Part Number | 898-WD2M144WB1R300 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | WD2 Series PCI Express and Display Port High-Speed Docking | |
| Online Catalog | WD2 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | JAE Electronics | |
| Series | WD2 | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Connector Type | Plug, Outer Shroud Contacts | |
| Number of Positions | 148 (144 + 4 Power) | |
| Pitch | 0.020" (0.50mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide, Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 12µin (0.30µm) | |
| Mated Stacking Heights | 17.9mm | |
| Height Above Board | 0.472" (12.00mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WD2M144WB1R300 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WD2M144WB1R300 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of WD2M144WB1R300 is new and unused, you can buy WD2M144WB1R300 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WD2M144WB1R300.
