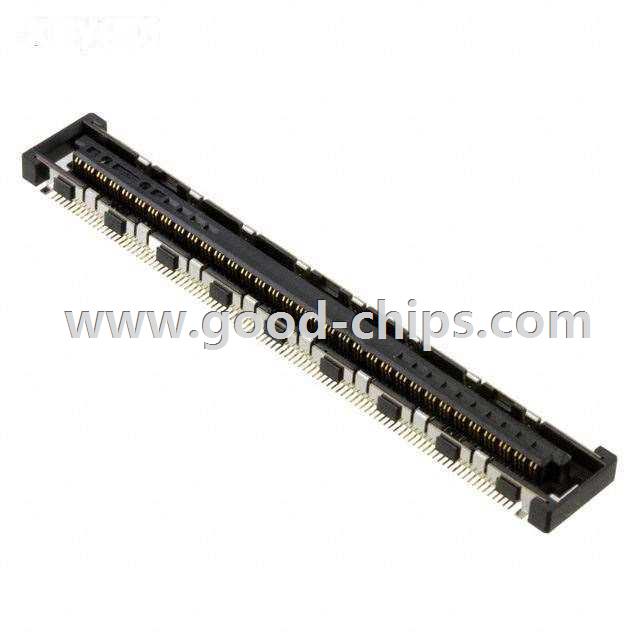

| Manufacturer Part Number: | WB3F200VD1 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 200 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WB3F200VD1 Datasheet |
| Internal Part Number | 898-WB3F200VD1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices17/Apr/2015 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | JAE Electronics | |
| Series | WB3 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Connector Type | Receptacle, Center Strip Contacts | |
| Number of Positions | 200 | |
| Pitch | 0.020" (0.50mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide, Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Mated Stacking Heights | 4mm, 5mm | |
| Height Above Board | 0.098" (2.50mm) | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WB3F200VD1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WB3F200VD1 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of WB3F200VD1 is new and unused, you can buy WB3F200VD1 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WB3F200VD1.
