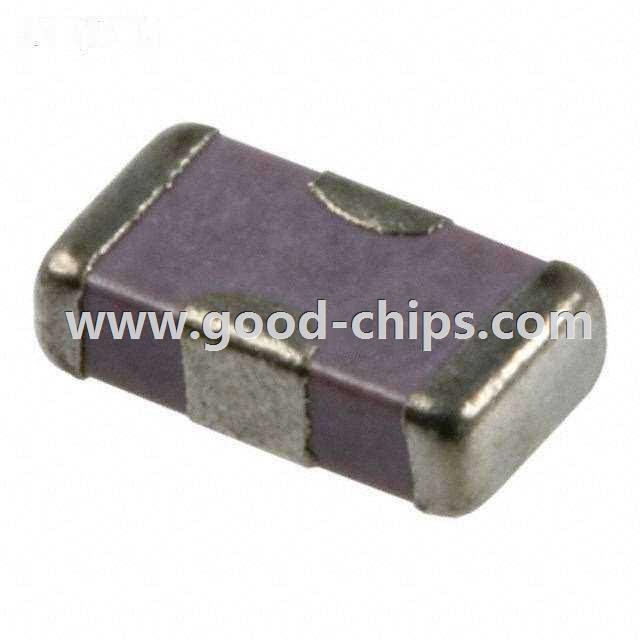

Manufacturer Part Number: | W3F45C2218AT1F |
---|---|
Manufacturer: | AVX Corporation |
Product Category: | Feed Through Capacitors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 220pF Feed Through Capacitor 50V 300mA 600 mOhm 1206 (3216 Metric), 4 PC Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | W3F45C2218AT1F Datasheet |
Internal Part Number | 898-W3F45C2218AT1F | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Components for Alternate Energy Applications Surface Mount FeedThru Filters | |
PCN Obsolescence/ EOL | W2F4/W3F4/W3H1 EOL 22/Jun/2015 | |
Category | Filters | |
Family | Feed Through Capacitors | |
Manufacturer | AVX Corporation | |
Series | W3F4 | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Capacitance | 220pF | |
Tolerance | -20%, +50% | |
Voltage - Rated | 50V | |
Current | 300mA | |
DC Resistance (DCR) (Max) | 600 mOhm | |
Operating Temperature | -55°C ~ 125°C | |
Insertion Loss | - | |
Temperature Coefficient | X7R | |
Ratings | - | |
Mounting Type | Surface Mount | |
Package / Case | 1206 (3216 Metric), 4 PC Pad | |
Size / Dimension | 0.128" L x 0.063" W (3.25mm x 1.60mm) | |
Height (Max) | 0.048" (1.22mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | W3F45C2218AT1F | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
W3F45C2218AT1F is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of W3F45C2218AT1F is new and unused, you can buy W3F45C2218AT1F AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for W3F45C2218AT1F.
