Manufacturer Part Number: | W24P-U |
---|---|
Manufacturer: | Inventek Systems |
Product Category: | RF Antennas |
Available Quantity: | 9645 Pieces |
Unit Price: | Quote by Email |

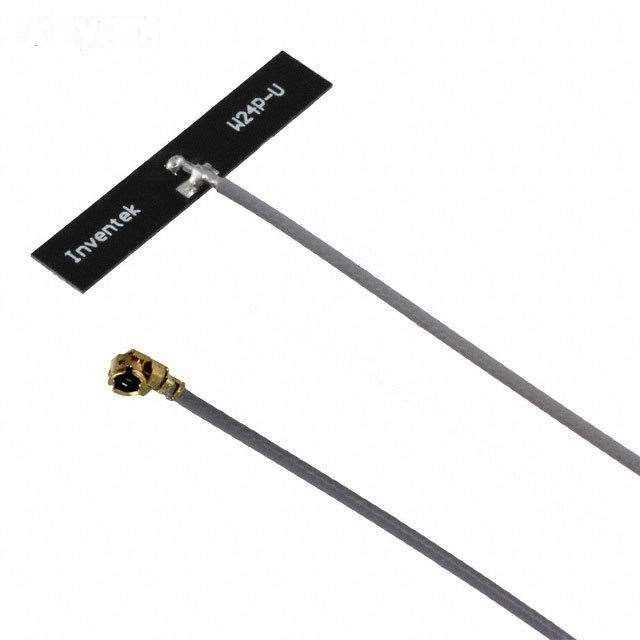

Description: | 2.4GHz WLAN PCB Trace RF Antenna 3.2dBi Connector, U.FL Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | W24P-U Datasheet |
Internal Part Number | 898-W24P-U | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | IoT Product Selector | |
Online Catalog | Inventek Systems - Embedded | |
Category | RF/IF and RFID | |
Family | RF Antennas | |
Manufacturer | Inventek Systems | |
Series | eS-WiFi™ | |
Packaging | Bulk | |
Part Status | Active | |
Frequency Group | UHF (2 GHz ~ 3 GHz) | |
Frequency (Center/Band) | 2.4GHz | |
Frequency Range | - | |
Antenna Type | PCB Trace | |
Number of Bands | 1 | |
VSWR | - | |
Return Loss | - | |
Gain | 3.2dBi | |
Power - Max | - | |
Features | - | |
Termination | Connector, U.FL | |
Ingress Protection | - | |
Mounting Type | Surface Mount | |
Height (Max) | 0.098" (2.50mm) | |
Applications | WLAN | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | W24P-U | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
W24P-U is in stock for immediate shipping now. We are the distributor of Inventek Systems all series components. The condition of W24P-U is new and unused, you can buy W24P-U Inventek Systems with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for W24P-U.
