| Manufacturer Part Number: | W2222-00 |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Terminals - Turret Connectors |
| Available Quantity: | 9488 Pieces |
| Unit Price: | Quote by Email |

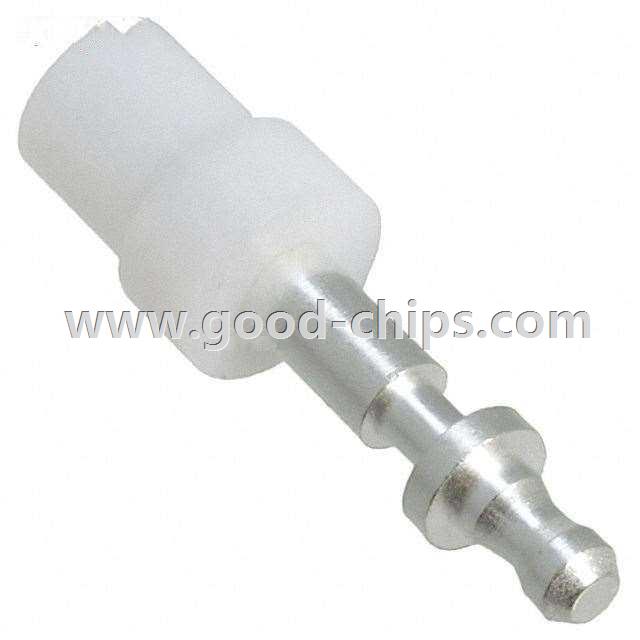

| Description: | Terminal Turret Connector Double End, Pin 0.256" (6.50mm) Silver |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | W2222-00 Datasheet |
| Internal Part Number | 898-W2222-00 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Turret Terminals - Harwin Inc | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Turret Connectors | |
| Manufacturer | Harwin Inc. | |
| Series | - | |
| Part Status | Active | |
| Terminal Type | Double End, Pin | |
| Number of Turrets | Single | |
| Length - Above Board | 0.256" (6.50mm) | |
| Length - Below Flange | 0.303" (7.70mm) | |
| Length - Overall | 0.560" (14.22mm) | |
| Mounting Type | Through Hole | |
| Termination | Press-Fit | |
| Flange Diameter | 0.187" (4.75mm) | |
| Diameter - Turret Head | - | |
| Staking Side OD | - | |
| Staking Side ID | - | |
| Mounting Hole Diameter | 0.156" (3.96mm) | |
| Board Thickness | 0.028" ~ 0.063" (0.72mm ~ 1.60mm) | |
| Contact Material | Brass | |
| Contact Finish | Silver | |
| Contact Finish Thickness | 137.8µin (3.50µm) | |
| Insulation | Insulated | |
| Material - Insulation | Polytetrafluoroethylene (PTFE) | |
| Insulation Color | White | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | W2222-00 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
W2222-00 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of W2222-00 is new and unused, you can buy W2222-00 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for W2222-00.
