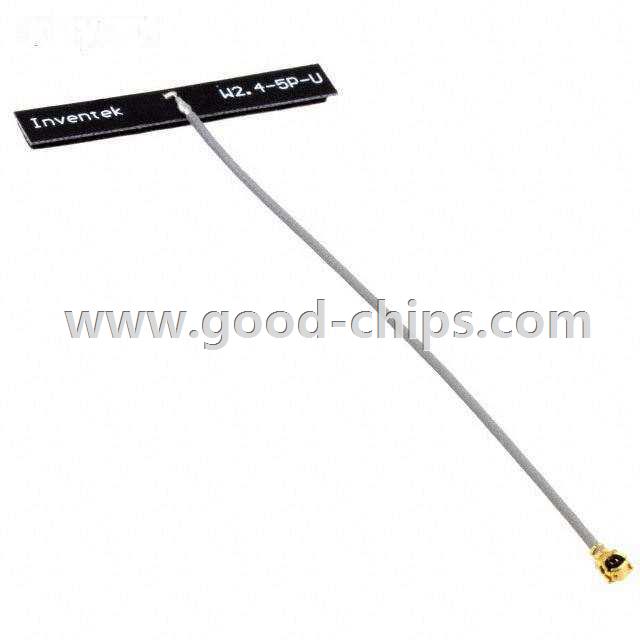

| Manufacturer Part Number: | W2.4-5P-U |
|---|---|
| Manufacturer: | Inventek Systems |
| Product Category: | RF Antennas |
| Available Quantity: | 9373 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.4GHz, 5.4GHz WLAN PCB Trace RF Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz 2.6dBi, 3.3dBi Connector, U.FL Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | W2.4-5P-U Datasheet |
| Internal Part Number | 898-W2.4-5P-U | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Online Catalog | Inventek Systems - Embedded | |
| Category | RF/IF and RFID | |
| Family | RF Antennas | |
| Manufacturer | Inventek Systems | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | |
| Frequency (Center/Band) | 2.4GHz, 5.4GHz | |
| Frequency Range | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | |
| Antenna Type | PCB Trace | |
| Number of Bands | 2 | |
| VSWR | 2 | |
| Return Loss | - | |
| Gain | 2.6dBi, 3.3dBi | |
| Power - Max | - | |
| Features | - | |
| Termination | Connector, U.FL | |
| Ingress Protection | - | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.039" (1.00mm) | |
| Applications | WLAN | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | W2.4-5P-U | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
W2.4-5P-U is in stock for immediate shipping now. We are the distributor of Inventek Systems all series components. The condition of W2.4-5P-U is new and unused, you can buy W2.4-5P-U Inventek Systems with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for W2.4-5P-U.
