| Manufacturer Part Number: | W.FL-R-SMT-1(10) |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Coaxial Connectors (RF) |
| Available Quantity: | 29010 Pieces |
| Unit Price: | Quote by Email |

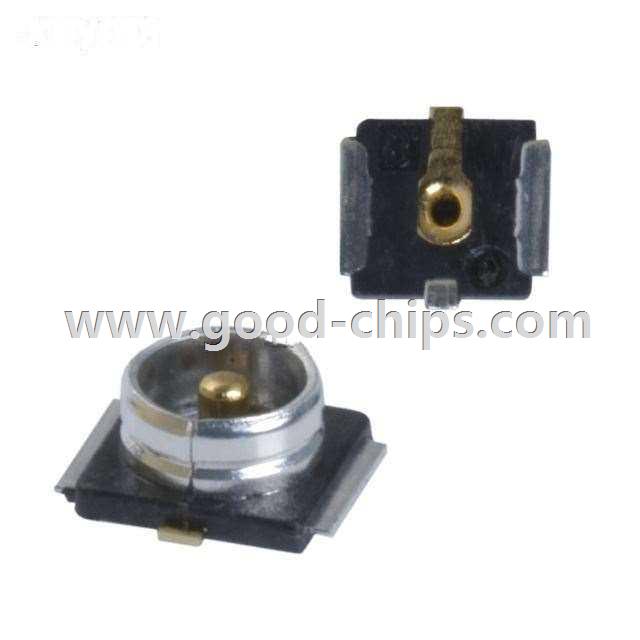

| Description: | Ultra Miniature Coaxial Connector Receptacle, Male Pin 50 Ohm Surface Mount Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | W.FL-R-SMT-1(10) Datasheet |
| Internal Part Number | 898-W.FL-R-SMT-1(10) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | W.FL Series 1.4mm Height Coaxial Connector U.FL and W.FL Series Connectors | |
| Online Catalog | W.FL Series | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | W.FL | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Style | Ultra Miniature Coaxial | |
| Connector Type | Receptacle, Male Pin | |
| Contact Termination | Solder | |
| Shield Termination | Solder | |
| Impedance | 50 Ohm | |
| Mounting Type | Surface Mount | |
| Cable Group | - | |
| Fastening Type | Snap-On | |
| Frequency - Max | 6GHz | |
| Features | - | |
| Housing Color | Black | |
| Ingress Protection | - | |
| Body Material | Phosphor Bronze | |
| Body Finish | Silver | |
| Center Contact Material | Brass | |
| Center Contact Plating | Gold | |
| Dielectric Material | Liquid Crystal Polymer (LCP) | |
| Voltage Rating | - | |
| Operating Temperature | -40°C ~ 90°C | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | W.FL-R-SMT-1(10) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
W.FL-R-SMT-1(10) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of W.FL-R-SMT-1(10) is new and unused, you can buy W.FL-R-SMT-1(10) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for W.FL-R-SMT-1(10).
