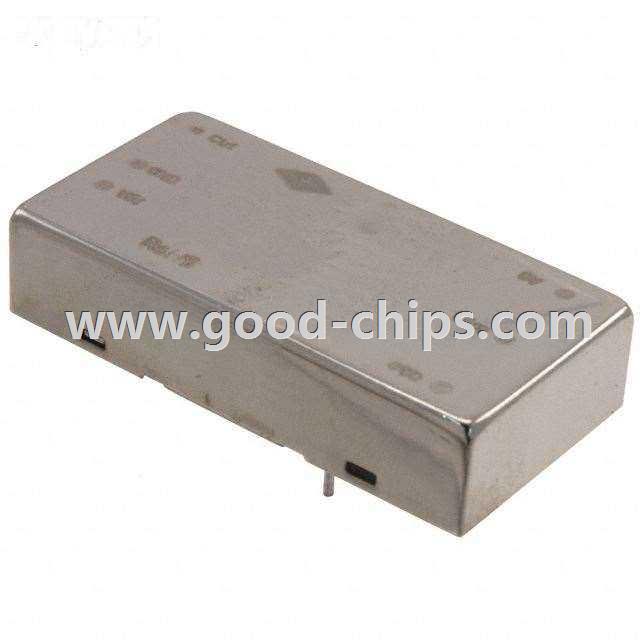

Manufacturer Part Number: | VYB15W-Q48-S12 |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONVERTER DC/DC 15W 12V 1.25A |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VYB15W-Q48-S12 Datasheet |
Internal Part Number | 898-VYB15W-Q48-S12 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | VYB15W Series Cert of Compliance | |
PCN Obsolescence/ EOL | Multiple Devices 31/May/2013 | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | CUI Inc. | |
Series | VYB15W | |
Packaging | Tube | |
Part Status | Obsolete | |
Type | Isolated Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 18V | |
Voltage - Input (Max) | 75V | |
Voltage - Output 1 | 12V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 1.25A | |
Power (Watts) - Manufacture Series | 15W | |
Voltage - Isolation | 1.5kV (1500V) | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, OVP, SCP, UVLO | |
Mounting Type | Through Hole | |
Package / Case | 6-DIP Module | |
Size / Dimension | 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 85% | |
Power (Watts) - Max | 15W | |
Standard Package | 7 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VYB15W-Q48-S12 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VYB15W-Q48-S12 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VYB15W-Q48-S12 is new and unused, you can buy VYB15W-Q48-S12 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VYB15W-Q48-S12.
