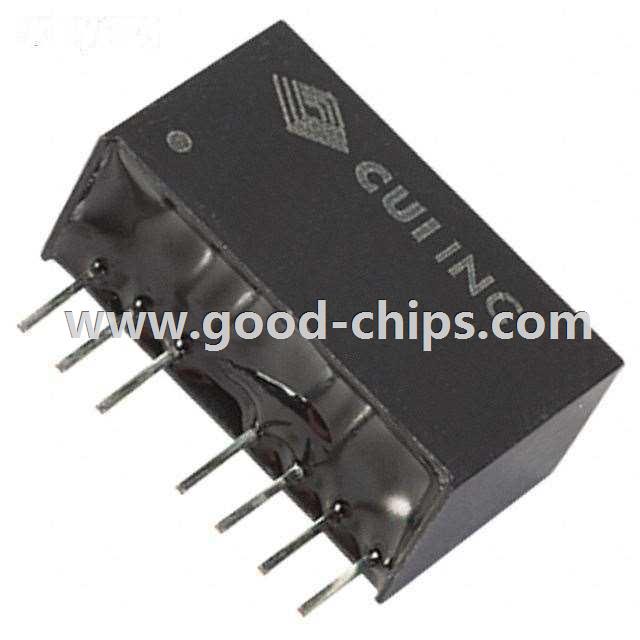

| Manufacturer Part Number: | VWRAS2-D5-D12-SIP |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9858 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERTER DC/DC +/-12V OUT 2W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VWRAS2-D5-D12-SIP Datasheet |
| Internal Part Number | 898-VWRAS2-D5-D12-SIP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | VWRAS2-SIP Series Cert of Compliance | |
| PCN Obsolescence/ EOL | Multiple Series 30/Apr/2014 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | VWRAS2-SIP | |
| Packaging | - | |
| Part Status | Obsolete | |
| Type | Isolated Module | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 9V | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | -12V | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 83mA, 83mA | |
| Power (Watts) - Manufacture Series | 2W | |
| Voltage - Isolation | 1.5kV (1500V) | |
| Applications | ITE (Commercial) | |
| Features | SCP | |
| Mounting Type | Through Hole | |
| Package / Case | 8-SIP Module (7 Leads) | |
| Size / Dimension | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 72% | |
| Power (Watts) - Max | 2W | |
| Standard Package | 22 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VWRAS2-D5-D12-SIP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VWRAS2-D5-D12-SIP is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VWRAS2-D5-D12-SIP is new and unused, you can buy VWRAS2-D5-D12-SIP CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VWRAS2-D5-D12-SIP.
