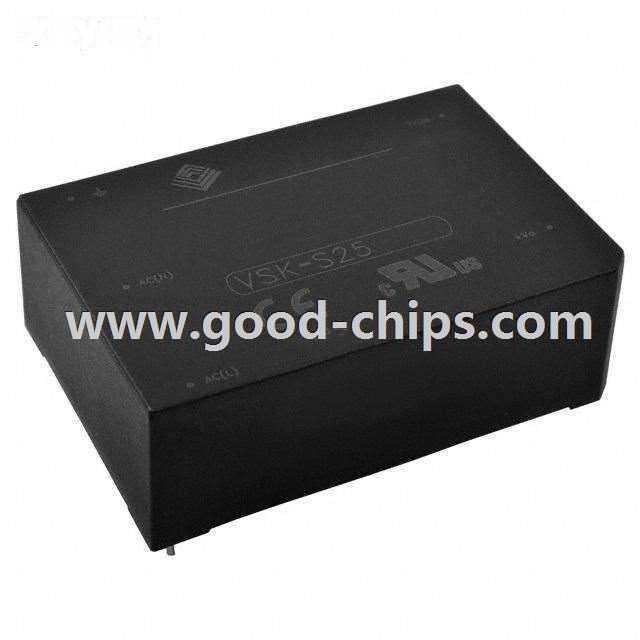

Manufacturer Part Number: | VSK-S25-12U |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | AC DC Converters |
Available Quantity: | 10920 Pieces |
Unit Price: | Quote by Email |
Description: | CONV AC/DC 25W 12V 2.1A PCB |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VSK-S25-12U Datasheet |
Internal Part Number | 898-VSK-S25-12U | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Encapsulated AC-DC Power Supply Series EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
RoHS Information | VSK-S25 Series Cert of Compliance | |
Featured Product | VSK Series Encapsulated AC-DC Modules | |
3D Model | VSK-S25-12U | |
PCN Design/Specification | VSK-S1,VSK- S2 Series 15/Sep/2015 | |
Online Catalog | VSK-S25 Series | |
Category | Power Supplies - Board Mount | |
Family | AC DC Converters | |
Manufacturer | CUI Inc. | |
Series | VSK-S25 | |
Part Status | Active | |
Number of Outputs | 1 | |
Voltage - Input | 85 ~ 264 VAC | |
Voltage - Output 1 | 12V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Voltage - Output 4 | - | |
Current - Output (Max) | 2.1A | |
Power (Watts) | 25W | |
Power Supply Type | Switching (Closed Frame) | |
Applications | ITE (Commercial) | |
Features | OCP, OTP, OVP, SCP | |
Operating Temperature | -25°C ~ 70°C | |
Efficiency | 82% | |
Mounting Type | Through Hole | |
Size / Dimension | 2.75" L x 1.89" W x 0.94" H (70.0mm x 48.0mm x 24.0mm) | |
Power (Watts) - Max | 25W | |
Line Regulation | ±0.5% | |
Load Regulation | ±1% | |
Approvals | CE, cULus, EN, IEC | |
Weight | 0.001 KG | |
Standard Package | 20 | |
Application | Email for details | |
Replacement Part | VSK-S25-12U | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VSK-S25-12U is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VSK-S25-12U is new and unused, you can buy VSK-S25-12U CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VSK-S25-12U.
