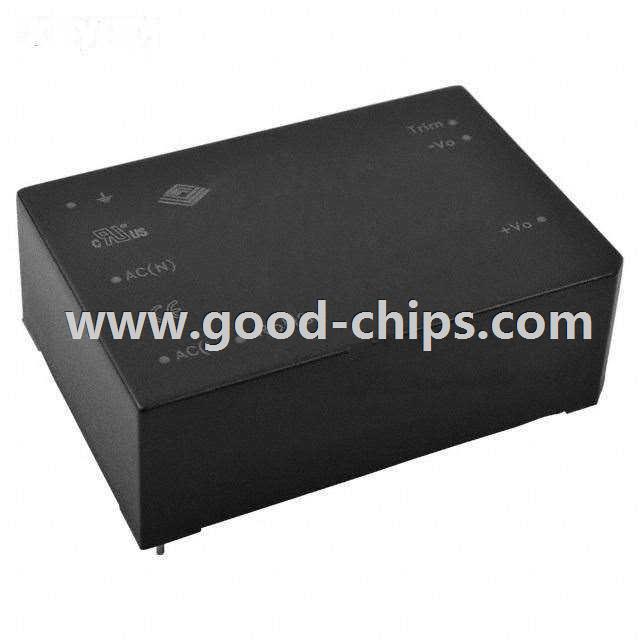

| Manufacturer Part Number: | VSK-S20-9U |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONV AC/DC 20W 9V 2.1A PCB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VSK-S20-9U Datasheet |
| Internal Part Number | 898-VSK-S20-9U | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
| RoHS Information | VSK-S20 Series Cert of Compliance | |
| Featured Product | VSK Series Encapsulated AC-DC Modules | |
| 3D Model | VSK-S20-9U | |
| PCN Design/Specification | VSK-S1,VSK- S2 Series 15/Sep/2015 | |
| Category | Power Supplies - Board Mount | |
| Family | AC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | VSK-S20 | |
| Part Status | Active | |
| Number of Outputs | 1 | |
| Voltage - Input | 85 ~ 264 VAC | |
| Voltage - Output 1 | 9V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 2.1A | |
| Power (Watts) | 20W | |
| Power Supply Type | Switching (Closed Frame) | |
| Applications | ITE (Commercial) | |
| Features | OCP, OTP, OVP, SCP | |
| Operating Temperature | -25°C ~ 70°C | |
| Efficiency | 77% | |
| Mounting Type | Through Hole | |
| Size / Dimension | 2.75" L x 1.89" W x 0.94" H (70.0mm x 48.0mm x 24.0mm) | |
| Power (Watts) - Max | 19W | |
| Line Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Approvals | CE, cULus, EN | |
| Weight | 0.001 KG | |
| Standard Package | 20 | |
| Application | Email for details | |
| Replacement Part | VSK-S20-9U | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VSK-S20-9U is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VSK-S20-9U is new and unused, you can buy VSK-S20-9U CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VSK-S20-9U.
