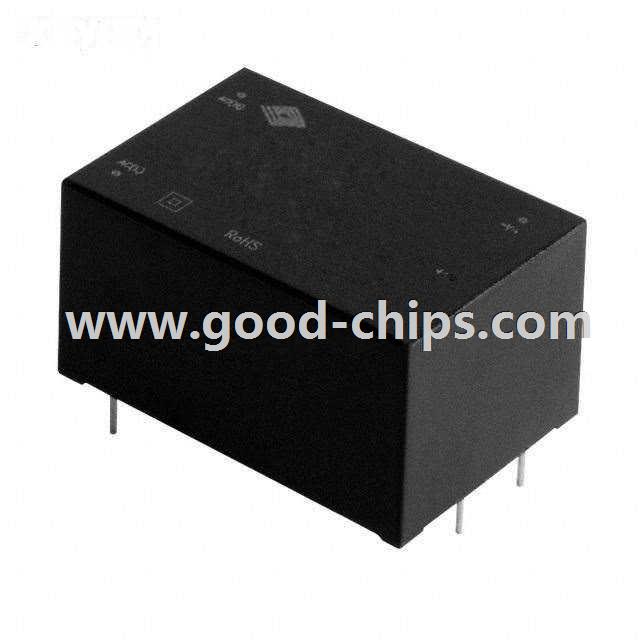

| Manufacturer Part Number: | VSK-S1-3R3U |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | AC DC Converters |
| Available Quantity: | 9633 Pieces |
| Unit Price: | Quote by Email |
| Description: | POWER SUPPLY SWITCHING 3.3V 1W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VSK-S1-3R3U Datasheet |
| Internal Part Number | 898-VSK-S1-3R3U | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Encapsulated AC-DC Power Supply Series EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
| RoHS Information | VSK-S1 Series Cert of Compliance | |
| 3D Model | VSK-S1-3R3U | |
| PCN Design/Specification | VSK-S1,VSK- S2 Series 15/Sep/2015 | |
| Online Catalog | VSK-S1 Series | |
| Category | Power Supplies - Board Mount | |
| Family | AC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | VSK-S1 | |
| Part Status | Active | |
| Number of Outputs | 1 | |
| Voltage - Input | 85 ~ 305 VAC | |
| Voltage - Output 1 | 3.3V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 300mA | |
| Power (Watts) | 1W | |
| Power Supply Type | Switching (Closed Frame) | |
| Applications | ITE (Commercial) | |
| Features | OCP, SCP | |
| Operating Temperature | -25°C ~ 70°C | |
| Efficiency | 63% | |
| Mounting Type | Through Hole | |
| Size / Dimension | 1.33" L x 0.87" W x 0.71" H (33.7mm x 22.2mm x 18.0mm) | |
| Power (Watts) - Max | 1W | |
| Line Regulation | ±2% | |
| Load Regulation | ±5% | |
| Approvals | CE, cUL, UL | |
| Weight | 0.001 KG | |
| Standard Package | 22 | |
| Application | Email for details | |
| Replacement Part | VSK-S1-3R3U | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VSK-S1-3R3U is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VSK-S1-3R3U is new and unused, you can buy VSK-S1-3R3U CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VSK-S1-3R3U.
