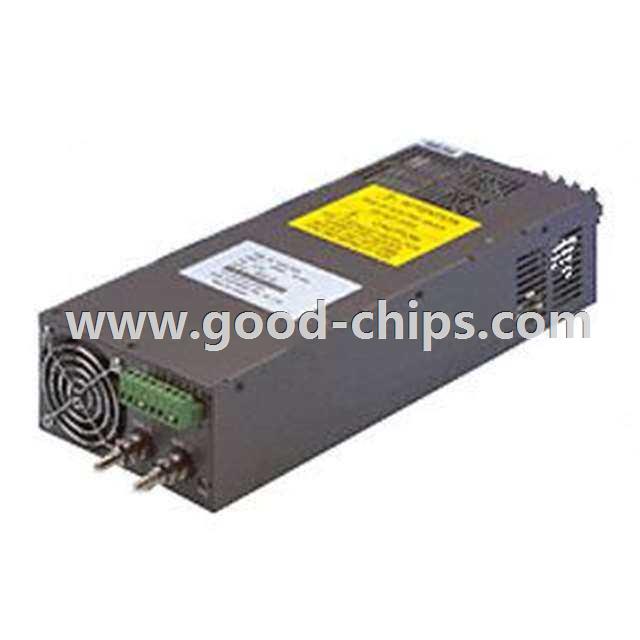

| Manufacturer Part Number: | VSCP-800-12 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 12V 800W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VSCP-800-12 Datasheet |
| Internal Part Number | 898-VSCP-800-12 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Factor Correction in Ac-Dc Power Supplies | |
| RoHS Information | VSCP-800 Series Cert of Compliance | |
| PCN Obsolescence/ EOL | VSCP/VSUP/VSCP Series 05/Sep/2014 | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | VSCP-800 | |
| Part Status | Obsolete | |
| Type | Enclosed | |
| Number of Outputs | 1 | |
| Voltage - Input | 90 ~ 260 VAC | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 66A | |
| Power (Watts) | 800W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | - | |
| Efficiency | 84% | |
| Operating Temperature | 0°C ~ 65°C (With Derating) | |
| Features | Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 11.42" L x 4.72" W x 2.66" H (290.0mm x 120.0mm x 67.5mm) | |
| Minimum Load Required | - | |
| Approvals | CB, CE, cURus, TUVgs | |
| Power (Watts) - Max | 800W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VSCP-800-12 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VSCP-800-12 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VSCP-800-12 is new and unused, you can buy VSCP-800-12 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VSCP-800-12.
