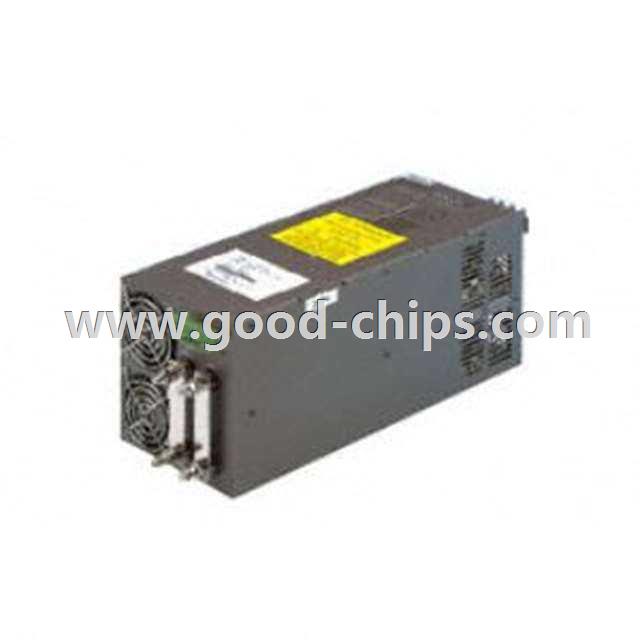

Manufacturer Part Number: | VSCP-1K5-12 |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | AC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | AC/DC CONVERTER 12V 1500W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VSCP-1K5-12 Datasheet |
Internal Part Number | 898-VSCP-1K5-12 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Power Factor Correction in Ac-Dc Power Supplies EMI Regulations and Mitigation Considerations for Switching Power Supplies | |
RoHS Information | VSCP-1K5 Series Cert of Compliance | |
PCN Obsolescence/ EOL | VSCP/VSUP/VSCP Series 05/Sep/2014 | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | AC DC Converters | |
Manufacturer | CUI Inc. | |
Series | VSCP-1K5 | |
Part Status | Obsolete | |
Type | Enclosed | |
Number of Outputs | 1 | |
Voltage - Input | 90 ~ 260 VAC | |
Voltage - Output 1 | 12V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Voltage - Output 4 | - | |
Current - Output (Max) | 125A | |
Power (Watts) | 1500W | |
Applications | ITE (Commercial) | |
Voltage - Isolation | - | |
Efficiency | 84% | |
Operating Temperature | 0°C ~ 65°C (With Derating) | |
Features | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | |
Mounting Type | Chassis Mount | |
Size / Dimension | 11.42" L x 4.72" W x 5.22" H (290.0mm x 120.0mm x 132.5mm) | |
Minimum Load Required | - | |
Approvals | CB, CE, cURus, TUVgs | |
Power (Watts) - Max | 1500W | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VSCP-1K5-12 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VSCP-1K5-12 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VSCP-1K5-12 is new and unused, you can buy VSCP-1K5-12 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VSCP-1K5-12.
