| Manufacturer Part Number: | VS-ST303C12CFK0 |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Thyristors - SCRs |
| Available Quantity: | 9024 Pieces |
| Unit Price: | Quote by Email |
| Description: | SCR 1200V 1180A Standard Recovery Chassis Mount TO-200AB (E-Puk) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VS-ST303C12CFK0 Datasheet |
| Internal Part Number | 898-VS-ST303C12CFK0 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Silicon Controlled Rectifiers | |
| Category | Discrete Semiconductor Products | |
| Family | Thyristors - SCRs | |
| Manufacturer | Vishay Semiconductor Diodes Division | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Voltage - Off State | 1200V | |
| Voltage - Gate Trigger (Vgt) (Max) | 3V | |
| Current - Gate Trigger (Igt) (Max) | 200mA | |
| Voltage - On State (Vtm) (Max) | 2.16V | |
| Current - On State (It (AV)) (Max) | 620A | |
| Current - On State (It (RMS)) (Max) | 1180A | |
| Current - Hold (Ih) (Max) | 600mA | |
| Current - Off State (Max) | 50mA | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 7950A, 8320A | |
| SCR Type | Standard Recovery | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Chassis Mount | |

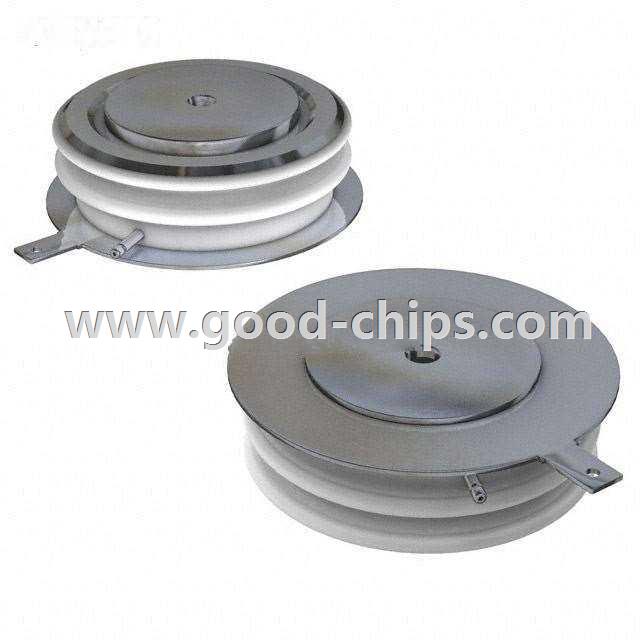

| Package / Case | TO-200AB, E-PUK | |
| Supplier Device Package | TO-200AB (E-Puk) | |
| Standard Package | 12 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VS-ST303C12CFK0 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VS-ST303C12CFK0 is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of VS-ST303C12CFK0 is new and unused, you can buy VS-ST303C12CFK0 Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VS-ST303C12CFK0.
