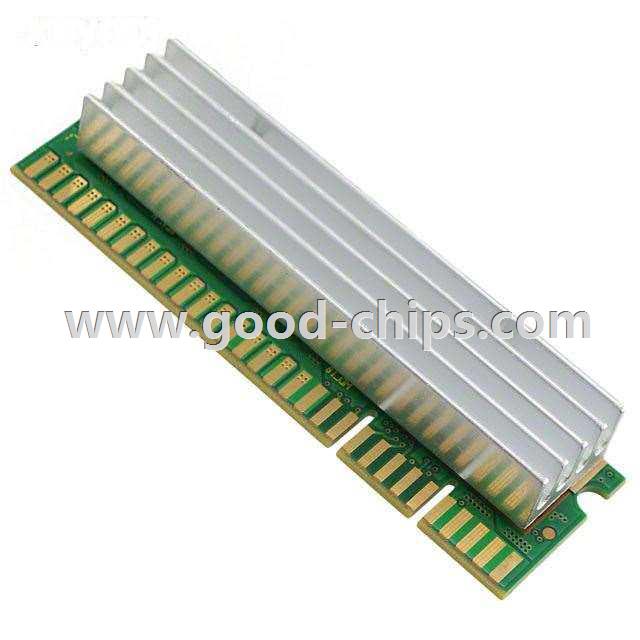

| Manufacturer Part Number: | VRM10-80-12-PJ |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONV DC/DC 80A 0.8375-1.6V OUT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VRM10-80-12-PJ Datasheet |
| Internal Part Number | 898-VRM10-80-12-PJ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | VRM10 Series | |
| PCN Packaging | CSA Marking 20/Sep/2013 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | VRM10 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 11V | |
| Voltage - Input (Max) | 12.6V | |
| Voltage - Output 1 | 1.9V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 80A | |
| Power (Watts) - Manufacture Series | 149W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OVP, SCP, UVLO | |
| Mounting Type | Card Edge | |
| Package / Case | - | |
| Size / Dimension | 3.19" L x 0.77" W x 1.24" H (81.0mm x 19.6mm x 31.5mm) | |
| Operating Temperature | 0°C ~ 60°C | |
| Efficiency | 85% | |
| Power (Watts) - Max | 152W | |
| Standard Package | 28 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VRM10-80-12-PJ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VRM10-80-12-PJ is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of VRM10-80-12-PJ is new and unused, you can buy VRM10-80-12-PJ Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VRM10-80-12-PJ.
