Manufacturer Part Number: | VR68000001004JAC00 |
---|---|
Manufacturer: | Vishay BC Components |
Product Category: | Through Hole Resistors |
Available Quantity: | 21010 Pieces |
Unit Price: | Quote by Email |

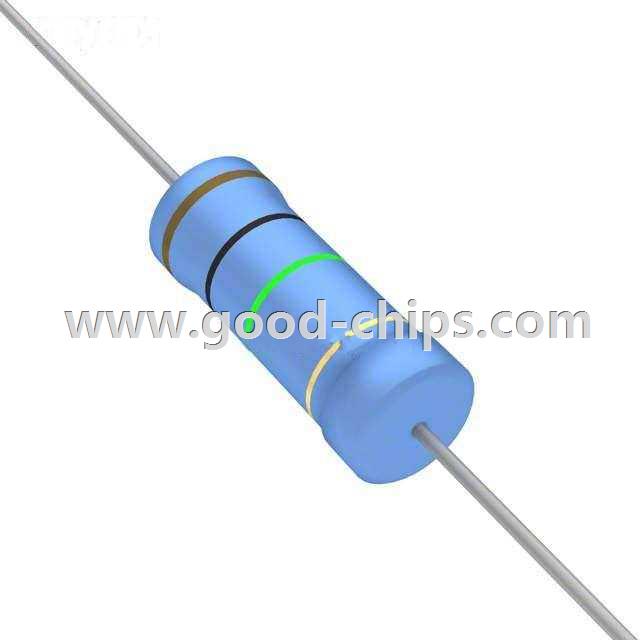

Description: | RES 1M OHM 1W 5% AXIAL |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VR68000001004JAC00 Datasheet |
Internal Part Number | 898-VR68000001004JAC00 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Packaging | VR68 Series Packaging 11/May/2016 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | VR68 Series | |
Category | Resistors | |
Family | Through Hole Resistors | |
Manufacturer | Vishay BC Components | |
Series | VR68 | |
Packaging | Tape & Box (TB) | |
Part Status | Active | |
Resistance (Ohms) | 1M | |
Tolerance | ±5% | |
Power (Watts) | 1W | |
Composition | Metal Film | |
Features | High Voltage, Pulse Withstanding | |
Temperature Coefficient | ±200ppm/°C | |
Operating Temperature | -55°C ~ 155°C | |
Package / Case | Axial | |
Supplier Device Package | Axial | |
Size / Dimension | 0.268" Dia x 0.709" L (6.80mm x 18.00mm) | |
Height | - | |
Number of Terminations | 2 | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VR68000001004JAC00 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VR68000001004JAC00 is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of VR68000001004JAC00 is new and unused, you can buy VR68000001004JAC00 Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VR68000001004JAC00.
