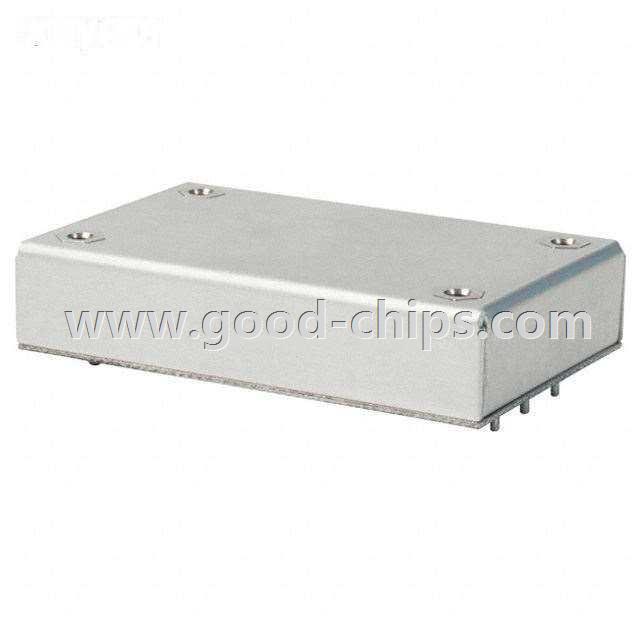

Manufacturer Part Number: | VQE50W-Q48-S5 |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONVERTER DC/DC 5V 10A 50W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VQE50W-Q48-S5 Datasheet |
Internal Part Number | 898-VQE50W-Q48-S5 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks Thermal Management of Power Supplies | |
RoHS Information | VQE50W Series Cert of Compliance | |
Featured Product | Industrial Applications | |
3D Model | VQE50W-Q48-S5 | |
Online Catalog | VQE50W Series | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | CUI Inc. | |
Series | VQE50W | |
Packaging | Bulk | |
Part Status | Active | |
Type | Isolated Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 18V | |
Voltage - Input (Max) | 75V | |
Voltage - Output 1 | 5V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 10A | |
Power (Watts) - Manufacture Series | 50W | |
Voltage - Isolation | 1.5kV (1500V) | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | |
Mounting Type | Through Hole | |
Package / Case | 8-DIP Module | |
Size / Dimension | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | |
Operating Temperature | -40°C ~ 105°C | |
Efficiency | 92% | |
Power (Watts) - Max | 50W | |
Standard Package | 48 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VQE50W-Q48-S5 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VQE50W-Q48-S5 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VQE50W-Q48-S5 is new and unused, you can buy VQE50W-Q48-S5 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VQE50W-Q48-S5.
