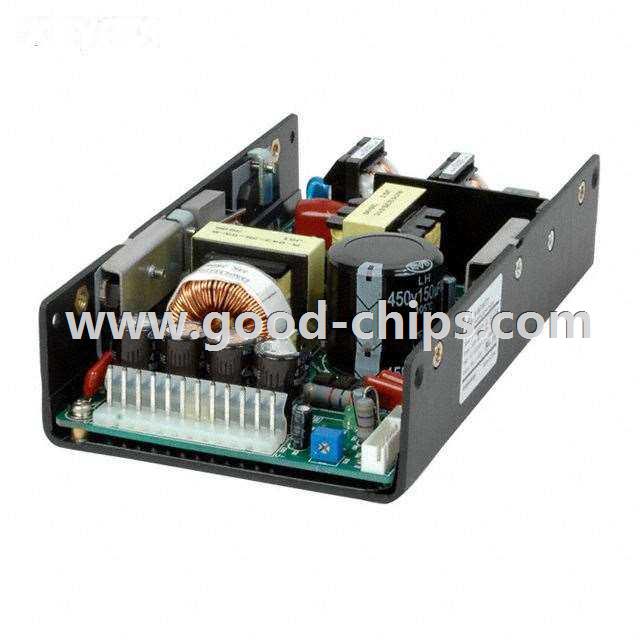

Manufacturer Part Number: | VPU-S200-24 |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | AC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | AC/DC CONVERTER 24V 200W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VPU-S200-24 Datasheet |
Internal Part Number | 898-VPU-S200-24 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Power Factor Correction in Ac-Dc Power Supplies EMI Regulations and Mitigation Considerations for Switching Power Supplies | |
RoHS Information | VPU-S200 Series Cert of Compliance | |
PCN Obsolescence/ EOL | VPU-S200 Series 8/Nov/2013 | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | AC DC Converters | |
Manufacturer | CUI Inc. | |
Series | VPU-S200 | |
Part Status | Obsolete | |
Type | Open Frame | |
Number of Outputs | 1 | |
Voltage - Input | 85 ~ 264 VAC | |
Voltage - Output 1 | 24V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Voltage - Output 4 | - | |
Current - Output (Max) | 8.3A | |
Power (Watts) | 200W | |
Applications | ITE (Commercial) | |
Voltage - Isolation | 3kV (3000V) | |
Efficiency | 81% | |
Operating Temperature | -10°C ~ 65°C (With Derating) | |
Features | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | |
Mounting Type | Chassis Mount | |
Size / Dimension | 6.80" L x 3.80" W x 1.50" H (172.7mm x 96.5mm x 38.1mm) | |
Minimum Load Required | - | |
Approvals | CE, cURus, GS | |
Power (Watts) - Max | 200W | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VPU-S200-24 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VPU-S200-24 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VPU-S200-24 is new and unused, you can buy VPU-S200-24 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VPU-S200-24.
